Product Name : AL ADAPTER
Product Introduction
  • Used for lathe.
  • Quick change design.
  • Modular system: internal hole 25 32 40 50.

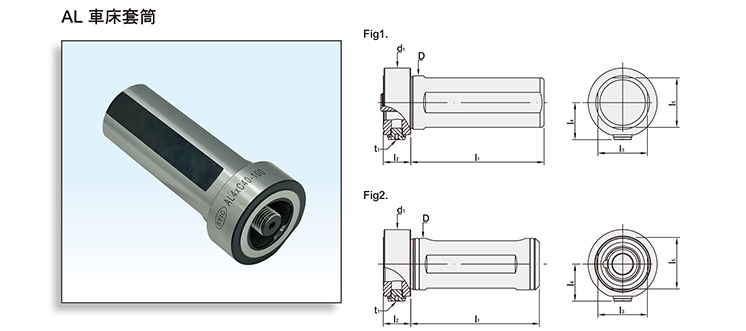

  • Fig1 needs to be connected with high-pressure coolant pipe: through-center coolant 70BAR.
  • Fig2 doesn't need to be connected with high-pressure coolant pipe: internal coolant supply 70BAR.



MODEL NO.TYPEl1l2l3l4l5Dd1T1Fig.APPLICABLE MACHINE
161.C25.073 AL3 x C25 - 73 73 25 23 26 23 25 45.5 PF1/8 1 -
161.C32.080 AL3 x C32 - 80 80 18 30 26 30 32 45.5 PF1/8 1 -
161.C32.080A AL3 x C32 - 80-A 80 18 30 26 31 32 45.5 PF1/8 2 OR
161.C40.100 AL3 x C40 - 100 100 18 37 26 37 40 45.5 PF1/8 1 -
162.C40.100 AL4 x C40 - 100 100 20 37 28 37 40 51.5 PF1/8 1 -
162.C40.100A AL4 x C40 - 100-A 99.5 20.5 37 28 38.5 40 51.5 PF1/8 2 OR
162.C40.100B AL4 x C40 - 100-B 99.5 20.5 37 28 38.5 40 51.5 PF1/8 2 YIPC
163.C50.120 AL5 x C50 - 120 120 24 14 33 14 50 61.5 PF1/8 1 -



MODEL NO.TYPELI
B11 - A - 10T10X200 - B T10 - 200 200 10
