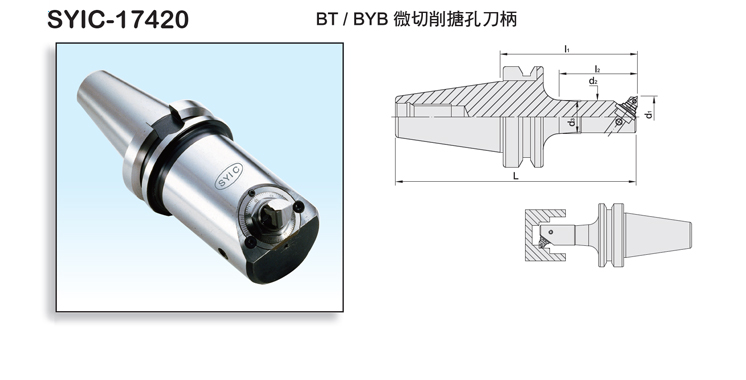

Product Name : BT/BYB Boring Head Shank
Product Introduction
  • Graduated dial for micro-adjustment in 0.02mm increments.
  • The pre-balance can reach G6.3 5,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1d2d3WEIGHT (KGS)
MIN.MAX.
SYIC - 17423 BT30 x BYB19 - 90 138.4 63 19 22.5 18 18 0.7
SYIC - 17424 BT30 x BYB22 - 105 153.4 78 22 29.5 20 20 0.7
SYIC - 17425 BT30 x BYB29 - 120 168.4 95 29 41 25 25 0.9
SYIC - 17426 BT30 x BYB38 - 120 168.4 95 38 50 35 35 1.4
SYIC - 17427 BT30 x BYB48 - 120 168.4 95 48 65 41 41 2.1
SYIC - 17433 BT40 x BYB19 - 120 185.4 83 19 22.5 18 18 1.5
SYIC - 17434 BT40 x BYB22 - 135 200.4 98 22 29.5 20 21 1.5
SYIC - 17435 BT40 x BYB29 - 150 215.4 116 29 41 25 27 1.5
SYIC - 17436 BT40 x BYB29 - 180 245.4 146 29 41 25 27 2
SYIC - 17437 BT40 x BYB38 - 150 215.4 113 38 50 35 36 1.8
SYIC - 17438 BT40 x BYB38 - 210 275.4 173 38 50 35 36 2.2
SYIC - 17439 BT40 x BYB48 - 150 215.4 113 48 65 41 46 2.1
SYIC - 17440 BT40 x BYB48 - 210 275.4 173 48 65 41 46 2.3
SYIC - 17441 BT40 x BYB62 - 150 215.4 123 62 90 54 60 2.9
SYIC - 17442 BT40 x BYB62 - 210 275.4 183 62 90 54 60 3.6
SYIC - 17453 BT50 x BYB19 - 135 236.8 85 19 22.5 18 18 3.8
SYIC - 17454 BT50 x BYB22 - 150 251.8 100 22 29.5 20 21 3.9
SYIC - 17455 BT50 x BYB29 - 150 251.8 100 29 41 25 27 4.5
SYIC - 17456 BT50 x BYB29 - 180 281.8 130 29 41 25 27 4.6
SYIC - 17457 BT50 x BYB38 - 165 266.8 115 38 50 35 36 4.5
SYIC - 17458 BT50 x BYB38 - 225 326.8 175 38 50 35 36 5
SYIC - 17459 BT50 x BYB48 - 165 266.8 122 48 65 41 40 5.2
SYIC - 17460 BT50 x BYB48 - 210 311.8 160 48 65 41 46 5.5
SYIC - 17461 BT50 x BYB48 - 255 356.8 205 48 65 41 46 5.7
SYIC - 17462 BT50 x BYB62 - 180 281.8 130 62 90 54 53 7
SYIC - 17463 BT50 x BYB62 - 240 341.8 185 62 90 54 60 7.6
SYIC - 17464 BT50 x BYB62 - 330 431.8 280 62 90 54 60 9.5
