Product Name : BT Boring Head Shank
Product Introduction
  • Boring Head Shank can be purchased separately instead of one set.
  • Packaged with a cardboard box.
  • Modular type. Can be used for various sizes of Boring Heads.
  • Full set packed by a wooden box.
  • Can order lengthened boring head shank.
  • The pre-balance can reach G6.3 5,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.

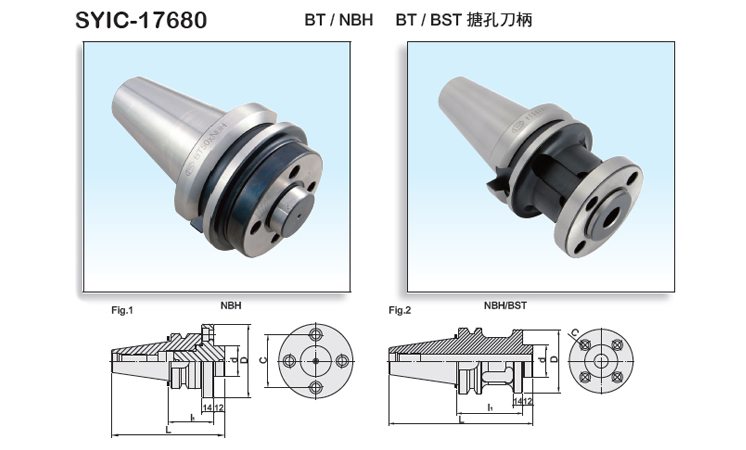

MODEL NO.TYPEl1LDd h7CFigWEIGHT (KGS)
SYIC - 17681 BT30 x NBH2084B - 100 100 160.4 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
2 1.9
SYIC - 17682 BT40 x NBH2084B - 100 100 177.4 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
2 2
SYIC - 17683 BT50 x NBH2084B - 100 100 213.8 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
2 4
SYIC - 17684 BT50 x NBH2084B - 165 165 278.8 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
2 4.5
SYIC - 17685 BT30 x NBH2084A 42 124.4 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
1 1.7
SYIC - 17686 BT40 x NBH2084A 51 155.4 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
1 1.7
SYIC - 17687 BT50 x NBH2084A 57 170.8 84 35 PCDø60
4 - M8 x 1.25P SCREW USE
1 3.5
SYIC - 18422 BT50 x BST - 100 100 208.8 95 50 PCDø72 4 - ø13 2 5.65
SYIC - 18424 BT50 x BST - 150 150 258.8 95 50 PCDø72 4 - ø13 2 4
SYIC - 18426 BT50 x BST - 200 200 308.8 95 50 PCDø72 4 - ø13 2 8.75
SYIC - 18428 BT50 x BST - 250 250 358.8 95 50 PCDø72 4 - ø13 2 9.76
SYIC - 18430 BT50 x BST - 300 300 408.8 95 50 PCDø72 4 - ø13 2 11.5
SYIC - 18432 BT50 x BST - 350 350 458.8 95 50 PCDø72 4 - ø13 2 12.8
