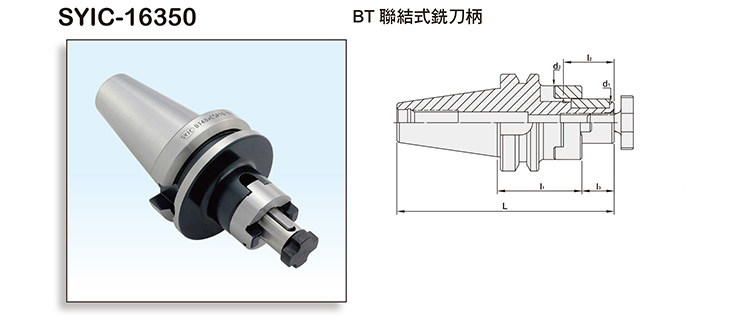

Product Name : BT/COMBI SHELL END MILL ARBOR
Product Introduction
  • Shank includes removable ring, nut and spanner.
  • Can purchase removable ring, nut, and spanner separately.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2WEIGHT (KGS)
SYIC - 16352 BT30 x CSR16 - 50 115.4 27 17 32 1.4
SYIC - 16354 BT30 x CSR22 - 50 117.4 31 19 40 1.6
SYIC - 16356 BT30 x CSR27 - 55 124.4 33 21 48 1.8
SYIC - 16362 BT40 x CSR16 - 55 137.4 27 17 32 1.3
SYIC - 16364 BT40 x CSR22 - 55 139.4 31 19 40 1.6
SYIC - 16366 BT40 x CSR27 - 55 124.4 33 21 48 1.9
SYIC - 16368 BT40 x CSR32 - 60 149.4 38 24 58 2.4
SYIC - 16370 BT40 x CSR40 - 60 152.4 41 27 70 3.4
SYIC - 16374 BT50 x CSR16 - 60 178.8 27 17 32 4.4
SYIC - 16376 BT50 x CSR22 - 60 180.8 31 19 40 4.1
SYIC - 16378 BT50 x CSR27 - 60 182.8 33 21 48 4.5
SYIC - 16380 BT50 x CSR32 - 60 158.8 38 24 58 4.8
SYIC - 16382 BT50 x CSR40 - 70 185.8 41 27 70 5.2
SYIC - 16384 BT50 x CSR50 - 75 206.8 46 30 90 5.4
