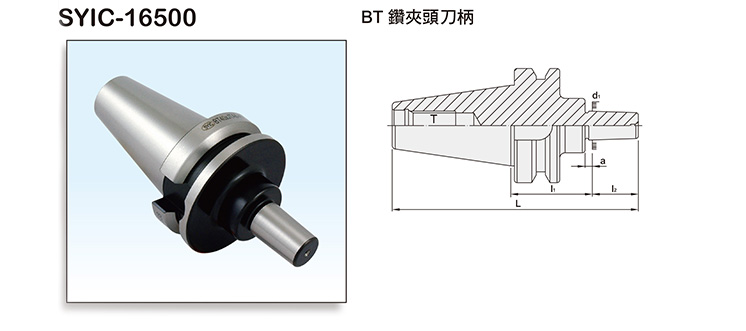

Product Name : BT DRILL CHUCK ARBOR
Product Introduction
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For Drill Chuck with DIN 238.



MODEL NO.TYPE - l1Ll2d1aT DRAW BARWEIGHT (KGS)
SYIC - 16502 BT30 x JTA2 - 45 115.625 22.225 14.199 4 M12 x 1.75P 0.6
SYIC - 16504 BT30 x JTA33 - 45 118.8 25.4 15.85 4 M12 x 1.75P 0.75
SYIC - 16506 BT30 x JTA6 - 45 118.8 25.4 17.17 4 M12 x 1.75P 0.6
SYIC - 16522 BT40 x JTA2 - 45 136.625 22.225 14.199 4 M16 x 2.0P 1.3
SYIC - 16523 BT40 x JTA33 - 45 135.8 25.4 15.85 4 M16 x 2.0P 1.3
SYIC - 16524 BT40 x JTA6 - 45 135.8 25.4 17.17 4 M16 x 2.0P 1.2
SYIC - 16525 BT40 x JTA6 - 105 195.8 25.4 17.17 4 M16 x 2.0P 1.65
SYIC - 16542 BT50 x JTA2 - 45 169.025 22.225 14.199 4 M24 x 3.0P 4.1
SYIC - 16543 BT50 x JTA33 - 45 172.2 25.4 15.85 4 M24 x 3.0P 4
SYIC - 16544 BT50 x JTA6 - 45 172.2 25.4 17.17 4 M24 x 3.0P 4.2
SYIC - 16545 BT50 x JTA6 - 105 232.2 25.4 17.17 4 M24 x 3.0P 4.6
SYIC - 16552 BT30 x B10 - 45 107.9 14.5 10.094 4 M12 x 1.75P 0.6
SYIC - 16553 BT30 x B12 - 45 111.9 18.5 12.065 4 M12 x 1.75P 0.85
SYIC - 16554 BT30 x B16 - 45 117.4 24 15.733 5 M12 x 1.75P 0.6
SYIC - 16572 BT40 x B10 - 45 124.9 14.5 10.094 3 M16 x 2.0P 1.45
SYIC - 16573 BT40 x B12 - 45 128.9 18.5 12.065 4 M16 x 2.0P 1.4
SYIC - 16574 BT40 x B16 - 45 134.4 24 15.733 5 M16 x 2.0P 1.45
SYIC - 16575 BT40 x B16 - 90 179.4 24 15.733 5 M16 x 2.0P 1.7
SYIC - 16576 BT40 x B18 - 45 142.4 32 17.78 5 M16 x 2.0P 1.5
SYIC - 16577 BT40 x B18 - 90 182.4 32 17.78 5 M16 x 2.0P 1.8
SYIC - 16592 BT50 x B10 - 45 161.3 14.5 10.094 3 M24 x 3.0P 3.6
SYIC - 16593 BT50 x B12 - 45 165.3 18.5 12.065 4 M24 x 3.0P 3.6
SYIC - 16594 BT50 x B12 - 105 225.3 18.5 12.065 4 M24 x 3.0P 5.5
SYIC - 16595 BT50 x B16 - 45 170.8 24 15.733 5 M24 x 3.0P 5.1
SYIC - 16596 BT50 x B16 - 105 230.8 24 15.733 5 M24 x 3.0P 5.5
SYIC - 16597 BT50 x B18 - 45 178.8 32 17.78 5 M24 x 3.0P 4.3
SYIC - 16598 BT50 x B18 - 105 238.8 32 17.78 5 M24 x 3.0P 5.6
