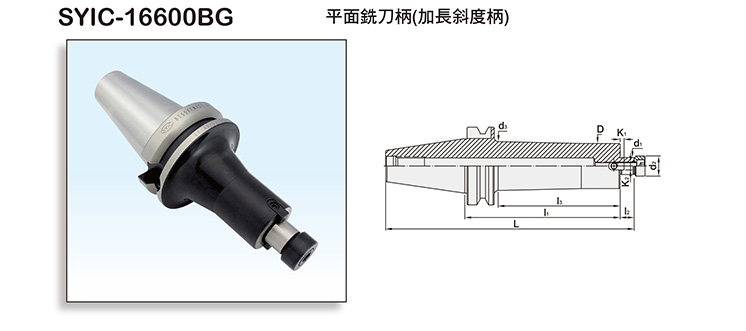

Product Name : BT FACE MILL ARBOR EXTENSION TYPE
Product Introduction
  • d1 tolerance: h6.
  • The tool holder is through-hole, which is better for water to get through and anti-vibration.
  • The top of the tool holder has a design for taper, which can increase the rigidity.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2l3Dd1d2d3K1K2WEIGHT (KGS)
SYIC - 16641 - 125BG BT50 x FMA25.4 - 125BG 246.8 20 79 48 25.4 31.5 60 4.25 9.52 5.3
SYIC - 16641 - 150BG BT50 x FMA25.4 - 150BG 271.8 20 102 48 25.4 31.5 60 4.25 9.52 6.4
SYIC - 16641 - 200BG BT50 x FMA25.4 - 200BG 321.8 20 152 58 25.4 31.5 63 4.25 9.52 7.5
SYIC - 16641 - 250BG BT50 x FMA25.4 - 250BG 371.8 20 202 58 25.4 31.5 63 4.25 9.52 8.6
SYIC - 16641 - 300BG BT50 x FMA25.4 - 300BG 421.8 20 252 58 25.4 31.5 63 4.25 9.52 9.7
SYIC - 16641 - 350BG BT50 x FMA25.4 - 350BG 471.8 20 302 58 25.4 31.5 66 4.25 9.52 10.8
SYIC - 16641 - 400BG BT50 x FMA25.4 - 400BG 521.8 20 352 58 25.4 31.5 66 4.25 9.52 11.9
SYIC - 16644 - 125BG BT50 x FMA31.75 - 125BG 248.8 22 82 70 31.75 41 75 6.7 12.7 5.6
SYIC - 16644 - 150BG BT50 x FMA31.75 - 150BG 273.8 22 107 70 31.75 41 75 6.7 12.7 6.3
SYIC - 16644 - 175BG BT50 x FMA31.75 - 175BG 298.8 22 132 70 31.75 41 75 6.7 12.7 8.3
SYIC - 16644 - 200BG BT50 x FMA31.75 - 200BG 323.8 22 157 70 31.75 41 75 6.7 12.7 9.1
SYIC - 16644 - 250BG BT50 x FMA31.75 - 250BG 373.8 22 207 70 31.75 41 75 6.7 12.7 10.6
SYIC - 16644 - 300BG BT50 x FMA31.75 - 300BG 423.8 22 252 70 31.75 41 75 6.7 12.7 12.1
SYIC - 16644 - 350BG BT50 x FMA31.75 - 350BG 473.8 22 302 70 31.75 41 75 6.7 12.7 13.6
