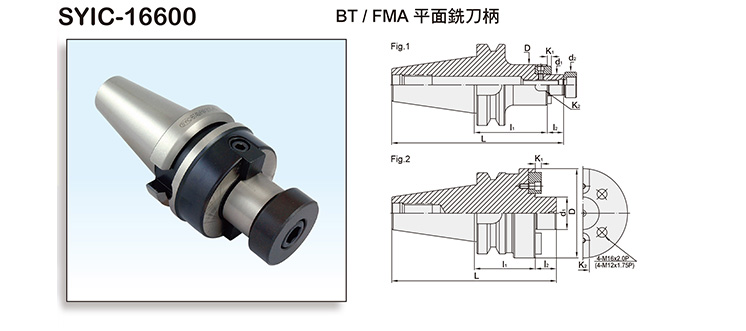

Product Name : BT FACE MILL ARBOR TYPE FMA
Product Introduction
  • d1 tolerance: h6.
  • Tolerance of 7/24 taper: within AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCH SIZE

MODEL NO.TYPELl1l2Dd1d2K1K2FigWEIGHT (KGS)
SYIC - 16612 BT30 x FMA25.4 - 45 113.4 45 20 50 25.4 31.5 4.52 9.52 1 1
SYIC - 16613 BT30 x FMA25.4 - 60 128.4 60 20 50 25.4 31.5 4.52 9.52 1 1.3
SYIC - 16614 BT30 x FMA31.75 - 45 115.4 45 22 60 31.75 41 6.7 12.7 1 1.2
SYIC - 16614 - 50 BT30 x FMA31.75 - 50 120.4 50 22 60 31.75 41 6.7 12.7 1 1.21
SYIC - 16615 BT40 x FMA25.4 - 45 130.4 45 20 50 25.4 31.5 4.52 9.52 1 1.8
SYIC - 16616 BT40 x FMA25.4 - 60 145.4 60 20 50 25.4 31.5 4.52 9.52 1 1.45
SYIC - 16617 BT40 x FMA25.4 - 90 175.4 90 20 50 25.4 31.5 4.52 9.52 1 2.1
SYIC - 16618 BT40 x FMA25.4 - 105 190.4 105 20 50 25.4 31.5 4.52 9.52 1 2.7
SYIC - 16619 BT40 x FMA31.75 - 45 132.4 45 22 60 31.75 41 6.7 12.7 1 1.7
SYIC - 16620 BT40 x FMA31.75 - 75 162.4 75 22 60 31.75 41 6.7 12.7 1 2.7
SYIC - 16621 BT40 x FMA31.75 - 90 177.4 90 22 60 31.75 41 6.7 12.7 1 2.65
SYIC - 16626 BT40 x FMA38.1 - 60 150.4 60 25 75 38.1 44.5 8.87 15.87 1 2.25
SYIC - 16627 BT40 x FMA50.8 - 60 161.4 60 36 98 50.8 65 9.75 19.05 1 2.25
SYIC - 16639 BT50 x FMA25.4 - 45 166.8 45 20 50 25.4 31.5 4.52 9.52 1 4.4
SYIC - 16640 BT50 x FMA25.4 - 90 211.8 90 20 50 25.4 31.5 4.52 9.52 1 5.1
SYIC - 16641 BT50 x FMA25.4 - 150 271.8 150 20 50 25.4 31.5 4.52 9.52 1 6.1
SYIC - 16642 BT50 x FMA31.75 - 45 168.8 45 22 60 31.75 41 6.2 12.7 1 4.5
SYIC - 16643 BT50 x FMA31.75 - 75 198.8 75 22 60 31.75 41 6.7 12.7 1 5.7
SYIC - 16644 BT50 x FMA31.75 - 105 228.8 105 22 60 31.75 41 6.7 12.7 1 5.7
SYIC - 16645 BT50 x FMA38.1 - 45 171.8 45 25 80 38.1 44.5 8.87 15.87 1 5.2
SYIC - 16646 BT50 x FMA38.1 - 75 201.8 75 25 80 38.1 44.5 8.87 15.87 1 6
SYIC - 16647 BT50 x FMA50.8 - 45 182.8 45 36 98 50.8 65 9.75 19.05 1 5.7
SYIC - 16648 BT50 x FMA50.8 - 75 212.8 75 36 98 50.8 65 9.75 19.05 1 6.8
SYIC - 16649 BT50 x FMA47.62 - 75 208.8 75 32 128.75 47.62 - 12.5 25.4 2 7.9
