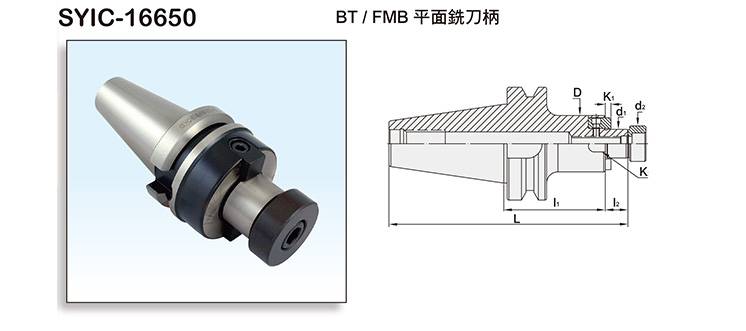

Product Name : BT FACE MILL ARBOR TYPE FMB
Product Introduction
  • d1 tolerance: h6.
  • Tolerance of 7/24 taper:within AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



METRIC SIZE

MODEL NO.TYPELl1l2Dd1d2K1K2WEIGHT (KGS)
SYIC - 16651 BT30 x FMB22 - 45 112.4 45 19 48 22 26 4.8 10 0.82
SYIC - 16652 BT30 x FMB22 - 60 127.4 60 19 48 22 26 4.8 10 1.02
SYIC - 16654 BT30 x FMB27 - 45 113.4 45 20 60 27 31.5 5.8 12 1.06
SYIC - 16655 BT30 x FMB27 - 60 128.4 60 20 60 27 31.5 5.8 12 1.34
SYIC - 16656 BT30 x FMB32 - 45 115.4 45 22 78 32 41 6.8 14 1.46
SYIC - 16657 BT40 x FMB22 - 45 129.4 45 19 48 22 26 4.8 10 1.34
SYIC - 16658 BT40 x FMB22 - 60 144.4 60 19 48 22 26 4.8 10 1.54
SYIC - 16659 BT40 x FMB22 - 100 184.4 100 19 48 22 26 4.8 10 2.08
SYIC - 16660 BT40 x FMB27 - 45 130.4 45 20 60 27 31.5 5.8 12 1.56
SYIC - 16663 BT40 x FMB27 - 60 145.4 60 20 60 27 31.5 5.8 12 1.88
SYIC - 16664 BT40 x FMB27 - 90 175.4 90 20 60 27 31.5 5.8 12 2.3
SYIC - 16665 BT40 x FMB27 - 105 190.4 105 20 60 27 31.5 5.8 12 2.08
SYIC - 16666 BT40 x FMB32 - 45 132.4 45 22 78 32 41 6.8 14 1.96
SYIC - 16667 BT40 x FMB32 - 60 147.4 60 22 78 32 41 6.8 14 2.34
SYIC - 16668 BT40 x FMB40 - 60 150.4 60 25 80 40 48 8.3 16 2.7
