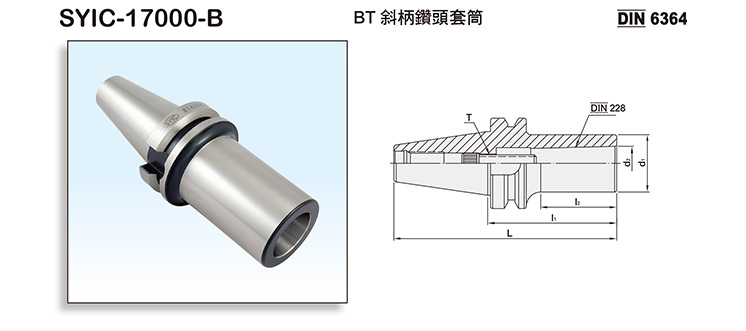

Product Name : BT MORSE TAPER ADAPTER
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.
  • Please confirm if you'd like to order screw in metric or inch size when making an order.



MODEL NO.TYPE - l1Ll2d1d2TWEIGHT(KGS)
SYIC - 17001 - B BT30 x MTB1 - 45 93.4 20 25 12.065 M6 x 1.0P 0.55
1/4" - 20
SYIC - 17006 - B BT30 x MTB2 - 60 108.4 36 32 17.78 M10 x 1.5P 0.6
3/8" - 16
SYIC - 17011 - B BT40 x MTB1 - 45 110.4 13 25 12.065 M6 x 1.0P 1.1
1/4" - 20
SYIC - 17014 - B BT40 x MTB2 - 45 110.4 13 32 17.78 M10 x 1.5P 1.1
3/8" - 16
SYIC - 17017 - B - 185 BT40 x MTB2 - 185 250.4 148 32 17.78 M10 x 1.5P 1.9
3/8" - 16
SYIC - 17018 - B BT40 x MTB3 - 75 140.4 45 40 23.825 M12 x 1.75 or 1/2" - 12 1.3
SYIC - 17019 - B BT40 x MTB3 - 90 155.4 53 40 23.825 M12 x 1.75 or 1/2" - 12 1.4
SYIC - 17020 - B BT40 x MTB3 - 120 185.4 83 40 23.825 M12 x 1.75 or 1/2" - 12 1.8
SYIC - 17021 - B - 180 BT40 x MTB3 - 180 245.4 143 40 23.825 M12 x 1.75 or 1/2" - 12 2.4
SYIC - 17024 - B BT40 x MTB4 - 100 165.4 67 48 31.267 M16 x 2.0P or 5/8" - 11 1.6
SYIC - 17024 - B - 120 BT40 x MTB4 - 120 185.4 87 48 31.267 M16 x 2.0P or 5/8" - 11 1.8
SYIC - 17024 - B - 180 BT40 x MTB4 - 180 245.4 147 48 31.267 M16 x 2.0P or 5/8" - 11 2.6
SYIC - 17031 - B BT50 x MTB1 - 45 146.8 6 25 12.065 M6 x 1.0P 3.8
1/4" - 20
SYIC - 17036 - B BT50 x MTB2 - 45 146.8 5 32 17.78 M10 x 1.5P 3.9
3/8" - 16
SYIC - 17042 - B BT50 x MTB3 - 60 161.8 12 40 23.825 M12 x 1.75P 3.9
1/2" - 12
SYIC - 17048 - B - 75 BT50 x MTB4 - 75 176.8 32 48 31.267 M16 x 2.0P 4.2
5/8" - 11
SYIC - 17053 - B - 120 BT50 x MTB5 - 120 221.8 77 63 44.399 M24 x 3.0P 4.3
