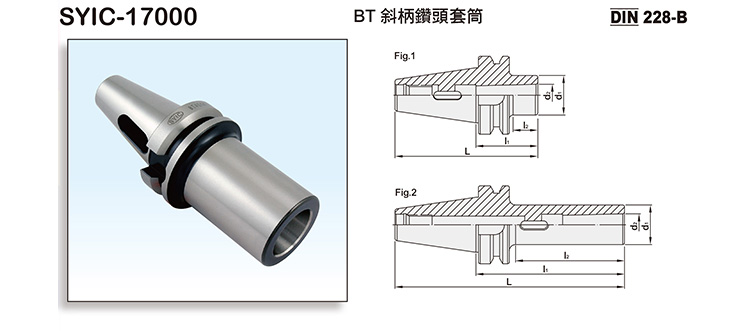

Product Name : BT MORSE TAPER ADAPTER
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.



MODEL NO.TYPE BT - MTA - l1Ll2d1d2FigWEIGHT (KGS)
SYIC - 17001 BT30 x MTA1 - 45 93.4 20 25 12.065 1 0.5
SYIC - 17004 BT30 x MTA1 - 105 153.4 78 25 12.065 2 0.7
SYIC - 17006 BT30 x MTA2 - 60 108.4 35 32 17.78 1 0.54
SYIC - 17008 BT30 x MTA2 - 120 168.4 95 32 17.78 2 0.9
SYIC - 17010 BT30 x MTA3 - 80 128.4 56 40 23.825 1 0.72
SYIC - 17011 BT40 x MTA1 - 45 110.4 15 25 12.065 1 1.05
SYIC - 17013 BT40 x MTA1 - 120 185.4 83 25 12.065 2 1.32
SYIC - 17014 BT40 x MTA2 - 50 115.4 20 32 17.78 1 1.1
SYIC - 17017 BT40 x MTA2 - 120 185.4 88 32 17.78 2 1.42
SYIC - 17018 BT40 x MTA3 - 70 135.4 38 40 23.825 1 1.2
SYIC - 17021 BT40 x MTA3 - 135 200.4 102 40 23.825 2 1.7
SYIC - 17023 BT40 x MTA4 - 95 160.4 63 48 31.267 1 1.4
SYIC - 17025 BT40 x MTA4 - 165 230.4 133 48 31.267 2 2.5
SYIC - 17031 BT50 x MTA1 - 45 146.8 2 25 12.065 1 3.8
SYIC - 17033 BT50 x MTA1 - 120 221.8 74 25 12.065 2 4.3
SYIC - 17035 BT50 x MTA1 - 180 281.8 132 25 12.065 2 5
SYIC - 17036 BT50 x MTA2 - 60 161.8 17 32 17.78 1 4
SYIC - 17039 BT50 x MTA2 - 135 236.8 89 32 17.78 2 4.7
SYIC - 17041 BT50 x MTA2 - 180 281.8 132 32 17.78 2 5
SYIC - 17042 BT50 x MTA3 - 65 166.8 22 40 23.825 1 3.9
SYIC - 17046 BT50 x MTA3 - 150 251.8 107 40 23.825 2 5
SYIC - 17047 BT50 x MTA3 - 180 281.8 132 40 23.825 2 5.5
SYIC - 17048 BT50 x MTA4 - 95 196.8 52 48 31.267 1 4.2
SYIC - 17051 BT50 x MTA4 - 180 281.8 132 48 31.267 2 5.5
SYIC - 17053 BT50 x MTA5 - 105 206.8 62 63 44.399 1 4.3
