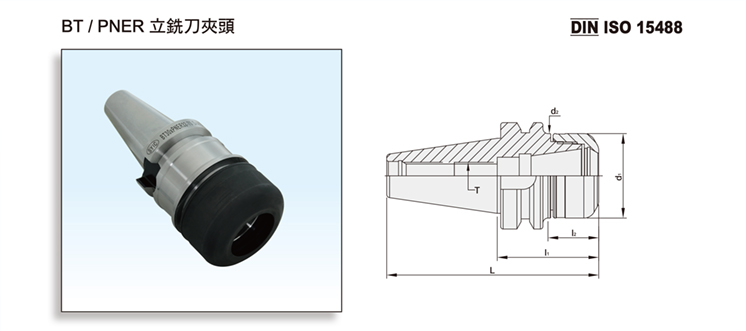

Product Name : BT/PNER COLLET CHUCK
Product Introduction
MODEL NO.TYPE - l1Ll2d1d2SIZE RANGETWEIGHT (KGS)
SYIC - 16704 BT30 x PNER16 - 50 98.4 25 30 30 3.0 ~ 10 M10 x 1.5P 0.80
SYIC - 16706 BT30 x PNER20 - 60 108.4 37 32 32 3.0 ~ 13 M12 x 1.75P 0.80
SYIC - 16708 BT30 x PNER25 - 60 108.4 37 40 40 3.0 ~ 16 M16 x 2.0P 0.90
SYIC - 16710 BT30 x PNER32 - 60 108.4 33 50 50 3.0 ~ 20 M16 x 2.0P 1.00
SYIC - 16714 BT40 x PNER16 - 70 135.4 40 30 20 3.0 ~ 10 M10 x 1.5P 1.12
SYIC - 16716 BT40 x PNER20 - 70 135.4 40 32 32 3.0 ~ 13 M12 x 1.75P 1.14
SYIC - 16718 BT40 x PNER25 - 70 135.4 40 40 40 3.0 ~ 16 M16 x 2.0P 1.19
SYIC - 16720 BT40 x PNER32 - 70 135.4 40 50 50 3.0 ~ 20 M16 x 2.0P 1.20
SYIC - 16722 BT40 x PNER40 - 70 135.4 40 63 63 6.0 ~ 26 M20 x 2.0P 1.40
SYIC - 16728 BT50 x PNER16 - 70 171.8 29 30 20 3.0 ~ 10 M10 x 1.5P 3.00
SYIC - 16730 BT50 x PNER20 - 70 171.8 29 32 32 3.0 ~ 13 M12 x 1.75P 3.00
SYIC - 16732 BT50 x PNER25 - 70 171.8 29 40 40 3.0 ~ 16 M16 x 2.0P 3.93
SYIC - 16734 BT50 x PNER32 - 70 171.8 31 50 50 3.0 ~ 20 M16 x 2.0P 4.12
SYIC - 16736 BT50 x PNER40 - 80 181.8 39 63 63 6.0 ~ 26 M20 x 2.0P 4.20
