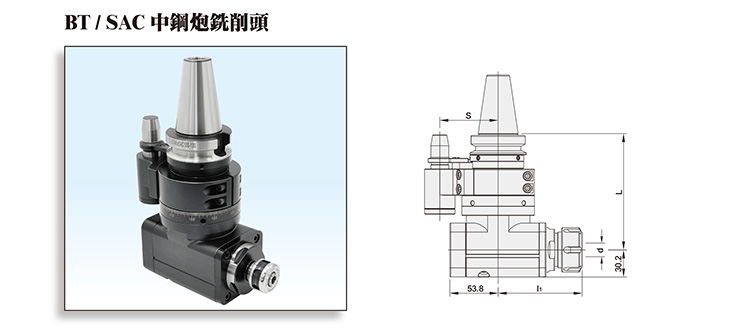

Product Name : BT/SAC Angle Head Holder
Product Introduction
MODEL NO.TYPELl1SIZE RANGESTORQUECOLLETWEIGHT (KGS)
11.639.10.130 BT40 x SAC10S - 130 130 88 Ø 2.0 ~Ø 10 65 25 N-m SKS10 6.4
11.639.13.130 BT40 x SAC13S - 130 130 89.6 Ø 3.0 ~Ø 13 65 25 N-m SKS13 6.4
11.639.16.130 BT40 x SAC16S - 130 130 102.3 Ø 3.0 ~Ø 16 65 25 N-m SKS16 6.4
11.639.20.130 BT40 x SAC20S - 130 130 110.3 Ø 3.0 ~Ø 20 65 25 N-m SKS20 6.4
11.640.16.130 BT40 x SAC16E - 130 130 89.6 Ø 1.0 ~Ø 10 65 25 N-m ER16 6.4
11.640.20.130 BT40 x SAC20E - 130 130 91 Ø 1.0 ~Ø 13 65 25 N-m ER20 6.4
11.640.25.130 BT40 x SAC25E - 130 130 92 Ø 1.0 ~Ø 16 65 25 N-m ER25 6.4
11.640.32.130 BT40 x SAC32E - 130 130 96 Ø 3.0 ~Ø 16 65 25 N-m ER32 6.44
11.641.68.130 BT40 x SAC25.4FA - 130 130 66 25.4 65 25 N-m - 6.54
11.641.22.130 BT40 x SAC22FB - 130 130 66 22 65 25 N-m - 6.54
12.639.10.147 BT50 x SAC10S - 147 147 88 Ø 2.0 ~Ø 10 80 25 N-m SKS10 8.4
12.639.13.147 BT50 x SAC13S - 147 147 89.6 Ø 3.0 ~Ø 13 80 25 N-m SKS13 8.4
12.639.16.147 BT50 x SAC16S - 147 147 102.3 Ø 3.0 ~Ø 16 80 25 N-m SKS16 8.4
12.639.20.147 BT50 x SAC20S - 147 147 110.3 Ø 3.0 ~Ø 20 80 25 N-m SKS20 8.4
12.640.16.147 BT50 x SAC16E - 147 147 89.6 Ø 1.0 ~Ø 10 80 25 N-m ER16 8.4
12.640.20.147 BT50 x SAC20E - 147 147 91 Ø 1.0 ~Ø 13 80 25 N-m ER13 8.4
12.640.25.147 BT50 x SAC25E - 147 147 92 Ø 1.0 ~Ø 16 80 25 N-m ER25 8.4
12.640.32.147 BT50 x SAC32E - 147 147 96 Ø 3.0 ~Ø 16 80 25 N-m ER32 8.44
12.641.68.147 BT50 x SAC25.4FA - 147 147 66 25.4 80 25 N-m - 8.54
12.641.22.147 BT50 x SAC22FB - 147 147 66 22 80 25 N-m - 8.54
