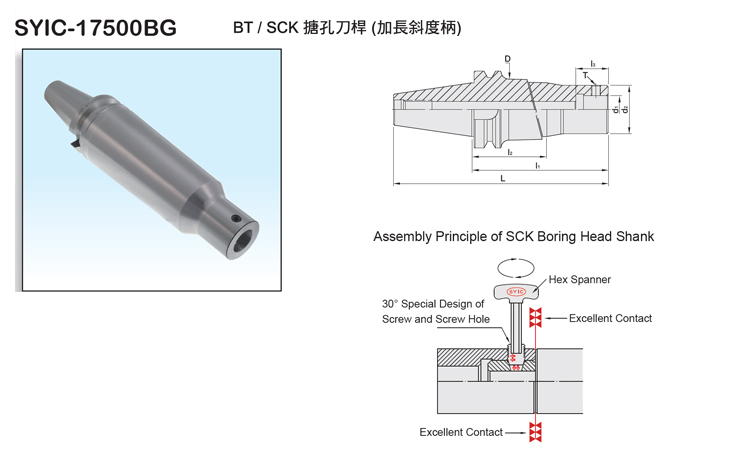

Product Name : BT/SCK Boring Head Shank Extension Type
Product Introduction
  • Internal hole tolerance: H6.
  • The tool holder is through-hole, which is better for water to get through and anti-vibration.
  • Exchangeable with a lot of “CK” series of tool holders.
  • The side lock screw and key slot is 90°.
  • It's easy to fasten SCK boring head and shank with a hex spanner.
  • 30° special design of screw and screw hole faciliates good repeated positioning accuracy. When fastening the screw, SCK boring head and SCK boring shank have excellent contact.The rigidity is improved a lot!



MODEL NO.TYPELl1l2l3Dd1d2TWEIGHT (KGS)
SYIC - 17520 - 240BG BT50 x SCK6 - 240BG 421.8 320 240 42 80 36 63 M12 x 1.75P 12.18
SYIC - 17521 - 240BG BT50 x SCK6 - 240BG 421.8 320 240 42 100 36 63 M12 x 1.75P 16.26
SYIC - 17520 - 300BG BT50 x SCK6 - 300BG 481.8 380 300 42 80 36 63 M12 x 1.75P 14.05
SYIC - 17521 - 300BG BT50 x SCK6 - 300BG 481.8 380 300 42 100 36 63 M12 x 1.75P 19.37
SYIC - 17520 - 360BG BT50 x SCK6 - 360BG 541.8 440 360 42 80 36 63 M12 x 1.75P 15.94
SYIC - 17521 - 360BG BT50 x SCK6 - 360BG 541.8 440 360 42 100 36 63 M12 x 1.75P 22.46
