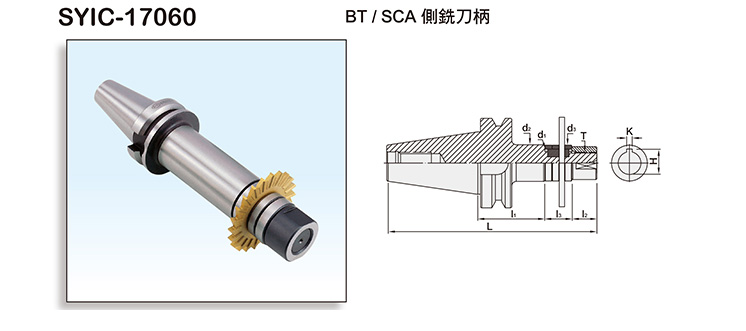

Product Name : BT SIDE CUTTER ADAPTER
Product Introduction
  • Nut standard DIN-2082-I
  • Bush standard DIN-2084-B



MODEL NO.TYPE (d1 - l1)Ll2l3d2d3KHTWEIGHT (KGS)
SYIC - 17060 BT30 x SCA10 - 60 155.4 12 35 18 18 - - M8 x 1.25P 0.8
SYIC - 17062 BT30 x SCA16 - 60 154.4 16 30 26 26 4 17.7 M14 x 1.5P 1.0 1.0
SYIC - 17064 BT30 x SCA22 - 60 160.4 22 30 34 34 6 24.3 M20 x 1.5P 1.2
SYIC - 17066 BT30 x SCA22 - 75 175.4 22 30 34 34 6 24.3 M20 x 1.5P 1.4
SYIC - 17068 BT40 x SCA16 - 60 171.4 16 30 26 26 4 17.7 M14 x 1.5P 1.5
SYIC - 17070 BT40 x SCA22 - 60 177.4 22 30 34 34 6 24.3 M20 x 1.5P 1.6
SYIC - 17071 BT40 x SCA22 - 75 192.4 22 30 34 34 6 24.3 M20 x 1.5P 1.7
SYIC - 17072 BT40 x SCA22 - 120 237.4 22 30 34 34 6 24.3 M20 x 1.5P 2.0
SYIC - 17073 BT40 x SCA27 - 75 198.4 28 30 41 40 7 30 M24 x 1.5P 2.1
SYIC - 17074 BT40 x SCA27 - 120 243.4 28 30 41 40 7 30 M24 x 1.5P 2.5
SYIC - 17075 BT40 x SCA32 - 90 217.4 32 30 47 47 8 35.5 M30 x 1.5P 2.6
SYIC - 17076 BT40 x SCA22.22 - 75 192.4 22 30 34 34 3.18 24.6 M20 x 1.5P 1.7
SYIC - 17077 BT40 x SCA22.22 - 120 237.4 22 30 34 34 3.18 24.6 M20 x 1.5P 2.0
SYIC - 17078 BT40 x SCA25.40 - 75 198.4 28 30 41 40 6.35 28.4 M24 x 1.5P 2.0
SYIC - 17079 BT40 x SCA25.40 - 120 243.4 28 30 41 40 6.35 28.4 M24 x 1.5P 2.4
SYIC - 17080 BT40 x SCA31.75 - 90 217.4 32 30 47 47 7.93 34.8 M30 x 1.5P 2.6
SYIC - 17083 BT50 x SCA22 - 90 243.8 22 30 34 34 6 24.3 M20 x 1.5P 4.4
SYIC - 17084 BT50 x SCA22 - 135 288.8 22 30 34 34 6 24.3 M20 x 1.5P 4.7
SYIC - 17085 BT50 x SCA27 - 90 249.8 28 30 41 40 7 30 M24 x 1.5P 4.6
SYIC - 17086 BT50 x SCA27 - 135 294.8 28 30 41 40 7 30 M24 x 1.5P 5.0
SYIC - 17087 BT50 x SCA32 - 90 253.8 32 30 47 47 8 35.5 M30 x 1.5P 4.7
SYIC - 17088 BT50 x SCA32 - 135 298.8 32 30 47 47 8 35.5 M30 x 1.5P 5.2
SYIC - 17089 BT50 x SCA40 - 90 261.8 40 30 55 55 10 43.7 M36 x 2.0P 5.0
SYIC - 17090 BT50 x SCA40 - 135 306.8 40 30 55 55 10 43.7 M36 x 2.0P 6.0
SYIC - 17091 BT50 x SCA22.22 - 90 243.8 22 30 34 34 3.18 24.6 M20 x 1.5P 4.4
SYIC - 17092 BT50 x SCA22.22 - 135 288.8 22 30 34 34 3.18 24.6 M20 x 1.5P 4.7
SYIC - 17093 BT50 x SCA25.40 - 90 249.8 28 30 41 40 6.35 28.4 M24 x 1.5P 4.5
SYIC - 17094 BT50 x SCA25.40 - 135 294.8 28 30 41 40 6.35 28.4 M24 x 1.5P 4.9
SYIC - 17095 BT50 x SCA31.75 - 90 253.8 32 30 47 47 7.93 34.8 M30 x 1.5P 4.7
SYIC - 17096 BT50 x SCA31.75 - 135 298.8 32 30 47 47 7.93 34.8 M30 x 1.5P 5.2
SYIC - 17097 BT50 x SCA38.10 - 90 261.8 40 30 55 55 9.525 42.4 M36 x 2.0P 4.9
SYIC - 17098 BT50 x SCA38.10 - 135 306.8 40 30 55 55 9.525 42.4 M36 x 2.0P 5.9
