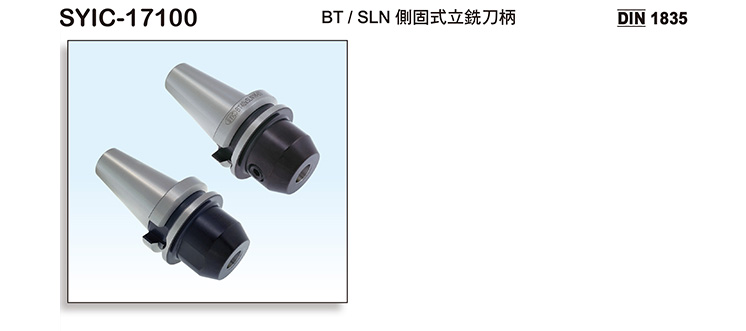

Product Name : BT/SLN SIDE LOCK END MILL HOLDER
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3l4l5d2TFigWEIGHT (KGS)
SYIC - 17122 BT30 x SLN6 - 60 108.4   - 35 33 25 M6 x 1.0P 1 0.55
SYIC - 17123 BT30 x SLN8 - 60 108.4 18 - 35 33 28 M8 x 1.25P 1 0.6
SYIC - 17124 BT30 x SLN10 - 60 108.4 20 - 39 35 35 M10 x 1.5P 1 0.7
SYIC - 17125 BT30 x SLN12 - 60 108.4 22.5 - 44 36 42 M12 x 1.75P 1 0.75
SYIC - 17126 BT30 x SLN16 - 75 123.4 24 - 47 53 48 M14 x 2.0P 1 1.05
SYIC - 17127 BT30 x SLN20 - 75 123.4 25 - 49 53 52 M16 x 2.0P 1 1.1
SYIC - 17128 BT30 x SLN25 - 90 138.4 24 25 58 68 65 M18 x 2.0P 2 1.7
SYIC - 17131 BT40 x SLN6 - 50 115.4 18 - 35 20 25 M6 x 1.0P 1 1.1
SYIC - 17131 - 150 BT40 x SLN6 - 150 215.4 18 - 35 113 25 M6 x 1.0P 1 1.32
SYIC - 17132 BT40 x SLN8 - 50 115.4 18 - 35 20 28 M8 x 1.25P 1 1.1
SYIC - 17132 - 150 BT40 x SLN8 - 150 215.4 18 - 35 113 28 M8 x 1.25P 1 1.3
SYIC - 17133 BT40 x SLN10 - 63 128.4 20 - 39 33 35 M10 x 1.5P 1 1.25
SYIC - 17133 - 150 BT40 x SLN10 - 150 215.4 20 - 39 113 35 M10 x 1.5P 1 1.4
SYIC - 17134 BT40 x SLN12 - 63 128.4 22.5 - 44 33 42 M12 x 1.75P 1 1.3
SYIC - 17134 - 150 BT40 x SLN12 - 150 215.4 22.5 - 44 116 42 M12 x 1.75P 1 1.53
SYIC - 17135 BT40 x SLN16 - 63 128.4 24 - 47 33 48 M14 x 2.0P 1 1.4
SYIC - 17135 - 150 BT40 x SLN16 - 150 215.4 24 - 47 120 48 M14 x 2.0P 1 1.6
SYIC - 17135 - 18 BT40 x SLN18 - 63 128.4 24 - 44 33 50 M14 x 2.0P 1 1.65
SYIC - 17136 BT40 x SLN20 - 63 128.4 25 - 49 33 52 M16 x 2.0P 1 1.4
SYIC - 17137 BT40 x SLN25 - 100 165.4 24 25 58 73 65 M18 x 2.0P 2 2.5
SYIC - 17138 BT40 x SLN32 - 100 165.4 24 28 63 73 72 M20 x 2.0P 2 2.75
SYIC - 17151 BT50 x SLN6 - 63 164.8 18 - 35 20 25 M6 x 1.0P 1 3.8
SYIC - 17152 BT50 x SLN8 - 63 164.8 18 - 39 20 28 M8 x 1.25P 1 3.8
SYIC - 17153 BT50 x SLN10 - 63 164.8 20 - 39 22 35 M10 x 1.5P 1 3
SYIC - 17154 BT50 x SLN12 - 80 181.8 22.5 - 44 39 42 M12 x 1.75P 1 4
SYIC - 17155 BT50 x SLN16 - 80 181.8 24 - 47 32 48 M14 x 2.0P 1 4.4
SYIC - 17156 BT50 x SLN20 - 80 181.8 25 - 49 37 52 M16 x 2.0P 1 4.4
SYIC - 17157 BT50 x SLN25 - 100 201.8 24 25 58 59 65 M18 x 2.0P 2 5.1
SYIC - 17158 BT50 x SLN32 - 105 206.8 24 28 63 64 72 M20 x 2.0P 2 5.2
SYIC - 17160 BT50 x SLN40 - 115 216.8 30 32 75 74 90 M20 x 2.0P 2 6.7
SYIC - 17164 BT50 x SLN40 - 120 221.8 30 32 75 79 90 M20 x 2.0P 2 6.7
SYIC - 17162 BT50 x SLN42 - 120 221.8 30 32 75 79 90 M20 x 2.0P 2 6.7
SYIC - 17166 BT50 x SLN50 - 120 221.8 35 35 78 82 98 M24 x 2.0P 2 7.16
SYIC - 17167 BT50 x SLN50.8 - 120 221.8 33.1 28.58 80 82 99 M20 x 2.0P 2 6.8
SYIC - 17170 BT50 x SLN50.8 - 120 221.8 33.1 28.58 75 81 95 M20 x 2.0P 3 7.2
SYIC - 17168 BT50 x SLN63 - 120 221.8 33.1 28.58 80 82 125 M16 x 2.0P 3 6.6
