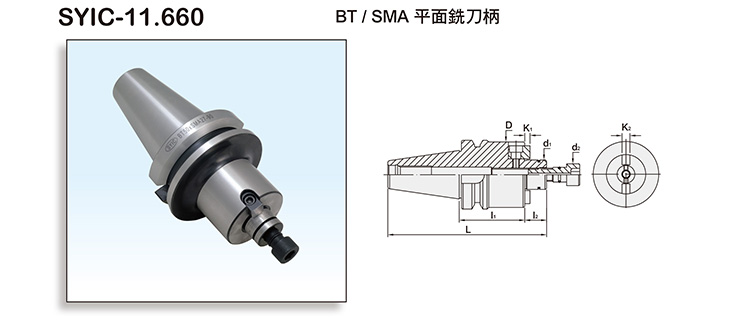

Product Name : BT/SMA FACE MILL ARBOR
Product Introduction
  • d1 tolerance: h6.
  • Suitable for SRM Shell Rough Fixation Mill.
  • There is more than 80% contact area that can avoid vibration effectively.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE
SYIC - SMA22 - W M10 x 1.5P - 35
SYIC - SMA27 - W M12 x 1.75P - 35



MODEL NO.TYPE - l1Ll2Dd1d2K1K2WEIGHT (KGS)
SYIC - 11.660.22.090 BT40 x SMA22 - 90 174.4 19 50 22 18 4.8 10 1.9
SYIC - 11.660.22.105 BT40 x SMA22 - 105 189.4 19 50 22 18 4.8 10 1.1
SYIC - 11.660.22.135 BT40 x SMA22 - 135 219.4 19 48 22 18 4.8 10 2.2
SYIC - 11.660.27.090 BT40 x SMA27 - 90 175.4 20 63 27 20 5.8 12 2
SYIC - 11.660.27.105 BT40 x SMA27 - 105 190.4 20 63 27 20 5.8 12 2.1
SYIC - 11.660.27.135 BT40 x SMA27 - 135 220.4 20 63 27 20 5.8 12 2.2
SYIC - 11.660.32.090 BT40 x SMA32 - 90 177.4 22 80 32 22 6.8 14 2.4
SYIC - 11.660.32.105 BT40 x SMA32 - 105 192.4 22 80 32 22 6.8 14 2.5
SYIC - 11.660.32.135 BT40 x SMA32 - 135 222.4 22 80 32 22 6.8 14 2.6
SYIC - 12.660.22.090 BT50 x SMA22 - 90 210.8 19 48 22 18 4.8 10 4.8
SYIC - 12.660.22.105 BT50 x SMA22 - 105 225.8 19 48 22 18 4.8 10 5
SYIC - 12.660.22.135 BT50 x SMA22 - 135 255.8 19 48 22 18 4.8 10 5.1
SYIC - 12.660.27.090 BT50 x SMA27 - 90 211.8 20 60 27 20 5.8 12 5.4
SYIC - 12.660.27.105 BT50 x SMA27 - 105 226.8 20 60 27 20 5.8 12 5.5
SYIC - 12.660.27.135 BT50 x SMA27 - 135 256.8 20 60 27 20 5.8 12 5.6
SYIC - 12.660.32.090 BT50 x SMA32 - 90 213.8 22 80 32 22 6.8 14 5.8
SYIC - 12.660.32.105 BT50 x SMA32 - 105 228.8 22 80 32 22 6.8 14 5.9
SYIC - 12.660.32.135 BT50 x SMA32 - 135 258.8 22 80 32 22 6.8 14 6
