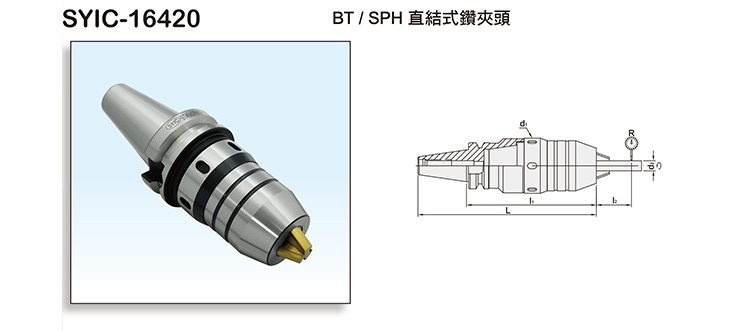

Product Name : BT/SPH DRILL CHUCK ADAPTER INTEGRATED TYPE
Product Introduction

This product is added with multi safety design and suitable for Machine Center. In automatic operation controlled by computer and unmanned management process, it can be processed safely and smoothly.

  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPELl1l2d1d2RWEIGHT (KGS)
SYIC - 16420 BT30 x SPH8 - 115 163.4 115 55 42 6 0.04 2.18
SYIC - 16422 BT30 x SPH13 - 130 178.4 130 75 54 8 0.04 2.45
SYIC - 16430 BT40 x SPH8 - 90 155.4 90 55 42 6 0.04 2.45
SYIC - 16432 BT40 x SPH13 - 105 170.4 105 75 54 8 0.04 2.33
SYIC - 16434 BT40 x SPH13 - 120 185.4 120 75 54 8 0.04 2.63
SYIC - 16440 BT50 x SPH8 - 100 201.8 100 55 42 6 0.04 4.93
SYIC - 16442 BT50 x SPH13 - 115 216.8 115 75 54 8 0.04 5.13
SYIC - 16444 BT50 x SPH13 - 135 236.8 135 75 54 8 0.04 5.43
SYIC - 16446 BT50 x SPH13 - 150 251.8 150 75 54 8 0.04 5.73
SYIC - 16448 BT50 x SPH16 - 128 229.8 128 80 62 10 0.04 5.93
