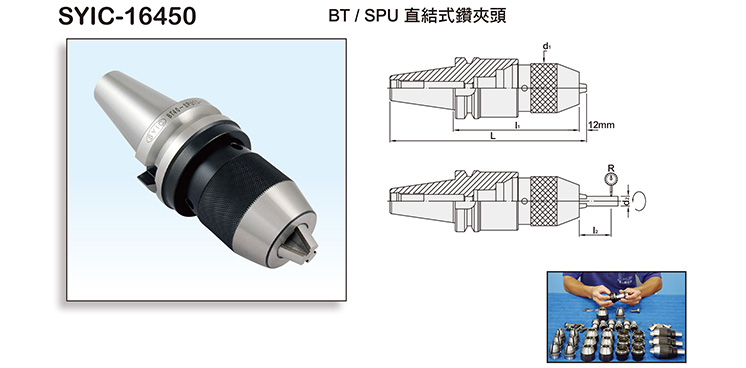

Product Name : BT/SPU DRILL CHUCK ADAPTER
Product Introduction

This product is added with multi safety design and suitable for Machine Center. In automatic operation controlled by computer and unmanned management process, it can be processed safely and smoothly.

  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPELl1l2d1d2RWEIGHT (KGS)
SYIC - 16452 BT30 x SPU8 - 80 140.4 80 55 37 6 0.04 0.72
SYIC - 16456 BT30 x SPU13 - 110 170.4 110 75 50 13 0.04 1.85
SYIC - 16458 BT30 x SPU16 - 115 175.4 115 80 57 16 0.04 2.18
SYIC - 16462 BT40 x SPU8 - 85 162.4 85 55 37 6 0.04 1.6
SYIC - 16466 BT40 x SPU13 - 100 177.4 100 75 50 13 0.04 2
SYIC - 16468 BT40 x SPU16 - 105 182.4 105 80 57 16 0.04 2.2
SYIC - 16472 BT50 x SPU8 - 90 203.8 90 55 37 6 0.04 4.16
SYIC - 16476 BT50 x SPU13 - 100 213.8 100 75 50 13 0.04 4.7
SYIC - 16477 BT50 x SPU13 - 120 233.8 120 75 50 13 0.04 5
SYIC - 16479 BT50 x SPU13 - 180 293.8 180 75 50 13 0.04 5.8
SYIC - 16480 BT50 x SPU16 - 105 218.8 105 80 57 16 0.04 5.03
SYIC - 16481 BT50 x SPU16 - 190 303.8 190 80 57 16 0.04 6
