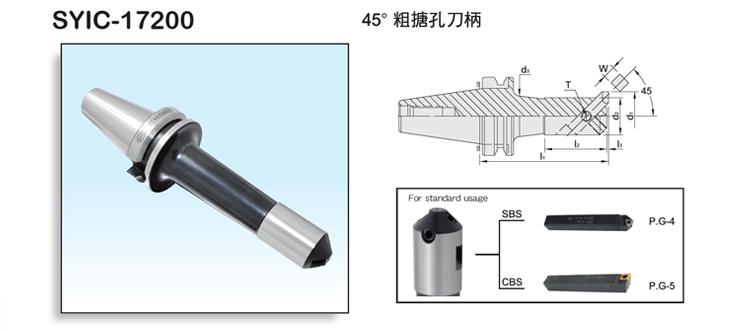

Product Name : BT Square Cutter Boring Bar Type:45°
Product Introduction
  • Used for boring blind holes.
  • The pre-balance can reach G6.3 5,000 rpm, without an inspection report.
  • Suitable for square cutting tools.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1l2l3d1d2d3WTWEIGHT (KGS)
MIN.MAX
SYIC - 17201 BT40 x BSA25 - 120 35 1 25 38 20 22 8 M6 1.2
SYIC - 17202 BT40 x BSA30 - 150 40 1.6 30 42 24 26 8 M6 1.4
SYIC - 17203 BT40 x BSA38 - 165 50 2.6 38 52 30 33 10 M8 1.7
SYIC - 17204 BT40 x BSA42 - 165 50 2.6 42 56 34 37 10 M8 2
SYIC - 17205 BT40 x BSA50 - 165 65 3 50 65 40 44 13 M8 2.3
SYIC - 17206 BT40 x BSA62 - 180 80 2 62 90 50 56 16 M10 3.4
SYIC - 17207 BT40 x BSA72 - 180 149 2.4 72 110 60 - 19 M10 3.9
SYIC - 17208 BT40 x BSA90 - 180 60 4 90 125 75 - 19 M10 5.2
SYIC - 17211 BT50 x BSA25 - 135 35 1 25 38 20 22 8 M6 4.2
SYIC - 17212 BT50 x BSA30 - 165 40 1.6 30 42 24 26 8 M6 4.4
SYIC - 17213 BT50 x BSA38 - 180 50 2.6 38 52 30 33 10 M8 4.8
SYIC - 17214 BT50 x BSA42 - 210 50 2.6 42 56 34 37 10 M8 5
SYIC - 17215 BT50 x BSA50 - 180 65 3 50 65 40 44 13 M10 5.4
SYIC - 17216 BT50 x BSA50 - 240 65 3 50 65 40 44 13 M10 5.7
SYIC - 17217 BT50 x BSA62 - 195 80 2 62 90 50 56 16 M10 6.2
SYIC - 17218 BT50 x BSA62 - 270 80 2 62 90 50 56 16 M10 7.6
SYIC - 17219 BT50 x BSA72 - 195 95 2.4 72 110 60 66 19 M10 7
SYIC - 17220 BT50 x BSA72 - 285 95 2.4 72 110 60 66 19 M10 9.3
SYIC - 17221 BT50 x BSA90 - 210 110 4 90 125 75 80 19 M12 9.2
SYIC - 17222 BT50 x BSA90 - 300 110 4 90 125 75 80 19 M12 12.3
SYIC - 17223 BT50 x BSA105 - 195 153 3 105 160 90 - 25 M12 10.7
SYIC - 17224 BT50 x BSA105 - 285 130 3 105 160 90 94 25 M12 15
SYIC - 17225 BT50 x BSA130 - 255 120 3 130 190 110 - 25 M12 14.5
