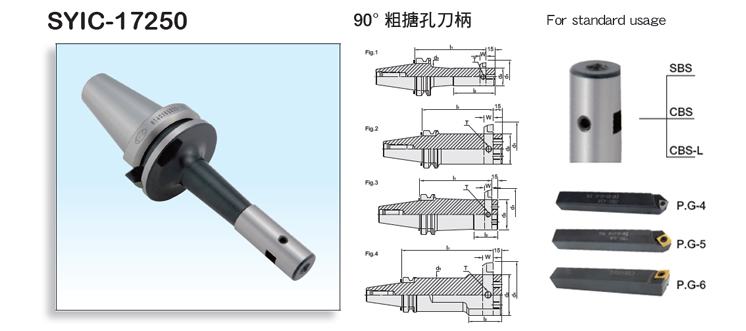

Product Name : BT Square Cutter Boring Bar Type:90°
Product Introduction
  • Suitable for BSA, BSB roughing boring head shank & ABH fine boring head shank.
  • Please inform the material of inserts when ordering.
  • SBS is fit for fine & medium processing.
  • The pre-balance can reach G6.3 5,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer request but the additional charge is needed.



MODEL NO.TYPE - l1d1l2d2d3WTFigWEIGHT (KGS)
MIN.MAX
SYIC - 17252 BT40 x BSB25 - 135 25 52 50 20 22 8 M6 1 1.3
SYIC - 17254 BT40 x BSB38 - 150 38 70 70 30 33 10 M8 1 2
SYIC - 17256 BT40 x BSB50 - 165 50 90 85 40 44 13 M10 1 2.5
SYIC - 17258 BT40 x BSB62 - 180 62 115 95 50 56 16 M10 3 3.7
SYIC - 17260 BT40 x BSB72 - 180 72 135 - 60 - 19 M10 2 4.7
SYIC - 17262 BT40 x BSB90 - 180 90 150 60 75 61 19 M12 4 5.2
SYIC - 17272 BT50 x BSB25 - 135 25 52 50 20 22 8 M6 1 4.2
SYIC - 17274 BT50 x BSB38 - 180 38 70 50 30 33 10 M8 1 4.9
SYIC - 17276 BT50 x BSB50 - 180 50 90 85 40 44 13 M10 1 5.5
SYIC - 17278 BT50 x BSB50 - 240 50 90 85 40 44 13 M10 1 5.8
SYIC - 17280 BT50 x BSB62 - 195 62 115 - 50 - 16 M10 2 6.4
SYIC - 17282 BT50 x BSB62 - 270 62 115 - 50 - 16 M10 2 7.8
SYIC - 17284 BT50 x BSB72 - 195 72 135 95 60 66 19 M10 3 7.3
SYIC - 17286 BT50 x BSB72 - 285 72 135 95 60 66 19 M10 3 9.6
SYIC - 17288 BT50 x BSB90 - 210 90 150 60 75 80 19 M12 3 9.7
SYIC - 17290 BT50 x BSB90 - 300 90 150 60 75 80 19 M12 3 12.8
SYIC - 17292 BT50 x BSB105 - 195 105 190 - 90 - 25 M12 2 11.4
SYIC - 17294 BT50 x BSB105 - 285 105 190 - 90 - 25 M12 2 15.7
SYIC - 17296 BT50 x BSB130 - 255 130 260 75 110 98 25 M12 4 14.1
