Product Name : BYB Boring Head
Product Introduction
  • Steel: SNCM-8
  • HRC: 45°
  • For the body of boring head, please refer to P.G-8 SYIC-17420.

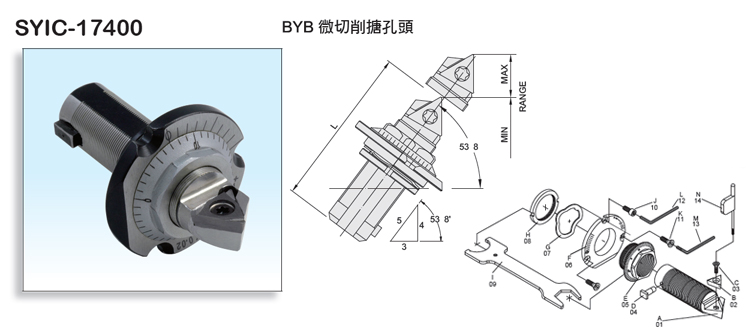

NO.NAME OF EACH PART
1 Shank
2 Insert
3 Insert Screw
4 Key
5 Hexagon Adjust Nut
6 Indicator Dish
7 Plane Spring
8 Nut
9 Wrench
10 Set Screw
11 Star Screw
12 Hexagon Wrench
13 Star Wrench
14 Insert Wrench
TYPEI09J10L12K11M13C03N14
M2 - 19 W2 M2.3 x 0.4P L1.5 - - M2 T6
M2 - 22 W2 M2.3 x 0.4P L1.5 - - M2 T6
M3 - 29 W3 M2.6 x 0.45P L2 - - M2 T6
M5 - 38 W5 M3 x 0.5P L2.5 - - M2.5 T9
M5 - 48 W5 - - M3 x 0.5P L2 M2.5 T9
M7 - 62 W7 M3 x 0.5P - M4 x 0.7P L2.5 M4 T15
MODEL NO.TYPERANGELINSERTWEIGHT (KGS)
MIN.MAX
SYIC - 17406 M2 - 19 19 22.5 20.7 TB..0601 0.06
SYIC - 17408 M2 - 22 22 29.5 23.5 TB..0601 0.06
SYIC - 17410 M3 - 29 29 41 31 TB..0601 0.07
SYIC - 17412 M5 - 38 38 50 40 TP..1103 0.08
SYIC - 17414 M5 - 48 48 65 47.7 TP..1103 0.1
SYIC - 17416 M7 - 62 62 90 63.5 TP..16T3 0.2

ACCESSORIES

INSERTSCREWWRENCHBYB BORING HEAD
TB..0601 M2-3.8-2.68-43 T6 M2 - 19 . M2 - 22
TB..0601 M2-5.0-2.7-60 T6 M3 - 29
TP..1103 M2-8.0-4.0-43 T9 M5 - 38
TP..16T3 M4-10-5.0-60 T15 M7 - 62

Inserts are optional accessories. Needs to be purchased additionally.
