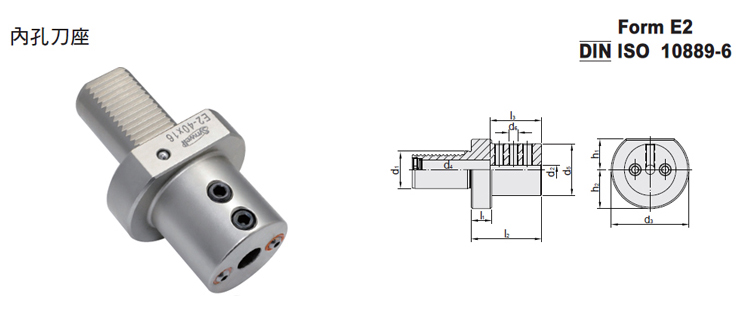

Product Name : Boring Bar Holder
Product Introduction
  • Tolerance of internal hole: H5.
  • Applicable for internal boring bar.
  • With center coolant and side coolant(coolant holes).



MODEL NO.TYPE d1 x d2d1d2d3d4d5d6h1h2l1l2l3
150.E2.30.08 30 x 8 30 8 68 6 55 M6 28 30 22 60 51
150.E2.30.10 30 x 10 30 10 68 8 55 M6 28 30 22 60 51
150.E2.30.12 30 x 12 30 12 68 10 55 M8 28 30 22 60 51
150.E2.30.14 30 x 14 30 14 68 10 55 M8 28 30 22 60 52
150.E2.30.16 30 x 16 30 16 68 12 55 M8 28 30 22 60 51
150.E2.30.18 30 x 18 30 18 68 10 55 M8 28 30 22 60 52
150.E2.30.20 30 x 20 30 20 68 16.5 55 M8 28 30 22 60 51
150.E2.30.25 30 x 25 30 25 68 16 55 M8 28 30 22 60 51
150.E2.30.32 30 x 32 30 32 68 16 68 M8 28 30 22 75 61
150.E2.40.10 40 x 10 40 10 83 8 55 M10 32.5 - 22 75 61
150.E2.40.12 40 x 12 40 12 83 10 55 M10 32.5 - 22 75 61
150.E2.40.14 40 x 14 40 14 83 10 55 M8 32.5 - 22 75 61
150.E2.40.16 40 x 16 40 16 83 16.5 55 M10 32.5 - 22 75 61
150.E2.40.18 40 x 18 40 18 83 10 55 M8 32.5 - 22 75 61
150.E2.40.20 40 x 20 40 20 83 16.5 55 M10 32.5 - 22 75 61
150.E2.40.25 40 x 25 40 25 83 20.5 55 M10 32.5 - 22 75 61
150.E2.40.32 40 x 32 40 32 83 20.5 83 M10 32.5 - 22 75 61
150.E2.40.40 40 x 40 40 40 83 20.5 83 M10 32.5 - 22 90 76
150.E2.40.50 40 x 50 40 50 83 20.5 83 M12 32.5 - 22 90 75
150.E2.50.12 50 x 12 50 12 98 10 55 M8 35 - 30 75 61
150.E2.50.16 50 x 16 50 16 98 12 68 M10 35 - 30 90 76
150.E2.50.20 50 x 20 50 20 98 16 68 M12 35 - 30 90 76
150.E2.50.25 50 x 25 50 25 98 20 68 M12 35 - 30 90 76
150.E2.50.32 50 x 32 50 32 98 25 68 M12 35 - 30 90 76
150.E2.50.40 50 x 40 50 40 98 25 98 M12 35 - 30 90 76
150.E2.50.50 50 x 50 50 50 98 25 98 M12 35 - 30 100 86
