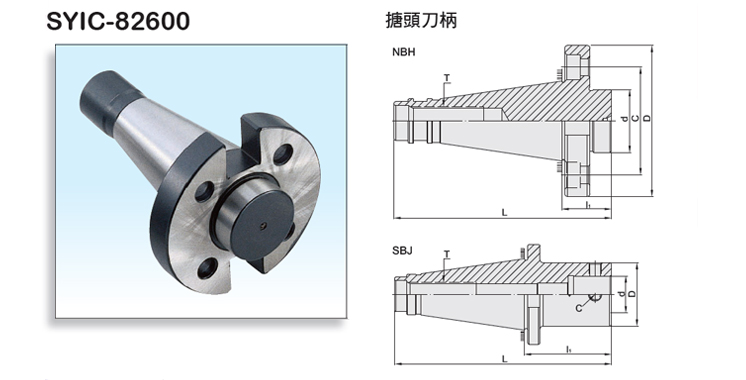

Product Name : Boring Head Shank
Product Introduction
  • Steel: SCM415.
  • HRC: 58°.
  • Can purchase one boring head and some boring head shanks of different specifications for different machine use.
  • Can order lengthened boring head shank by request.
  • Boring head shank can be purchased separately, cardboard box packing.



MODEL NO.TYPELl1DdCTWEIGHT (KGS)
SYIC - 82632 C32 x NBH2084 95 14 84 35 PCDø60 4 - M8 - 1.1
SYIC - 82635 R8 x NBH2084 122 41 84 35 PCDø60 4 - M8 7/16" - 20 1.1
SYIC - 82638 MTB3 x NBH2084 112 31 84 35 PCDø60 4 - M8 1/2" - 12 or M12 x 1.75P 1
SYIC - 82641 MTB4 x NBH2084 135 32.5 84 35 PCDø60 4 - M8 5/8" - 11 or M16 x 2.0P 1.3
SYIC - 82644 MTB5 x NBH2084 162 32.5 84 35 PCDø60 4 - M8 1" - 8 or M24 x 3.0P 2.3
SYIC - 82647 NT30 x NBH2084 96 27.6 84 35 PCDø60 4 - M8 1/2" - 12 or M12 x 1.75P 0.8
SYIC - 82650 NT40 x NBH2084 121 27.6 84 35 PCDø60 4 - M8 5/8" - 11 or M16 x 2.0P 1.2
SYIC - 82653 NT50 x NBH2084 168 41.2 84 35 PCDø60 4 - M8 1" - 8 or M24 x 3.0P 3.5
SYIC - 82656 C32 x SBJ16 135 55 63 36 M12 - 1.2
SYIC - 82659 C42 x SBJ16 135 55 63 36 M12 - 1.6
SYIC - 82662 R8 x SBJ16 162 55 63 36 M12 7/16" - 20 1.2
SYIC - 82665 NT30 x SBJ16 128 59.6 63 36 M12 1/2" - 12 or M12 x 1.75P 1.1
SYIC - 82668 NT40 x SBJ16 148 54.6 63 36 M12 5/8" - 11 or M16 x 2.0P 1.2
SYIC - 82671 NT50 x SBJ16 215 88.2 63 36 M12 1" - 8 or M24 x 3.0P 3.7
