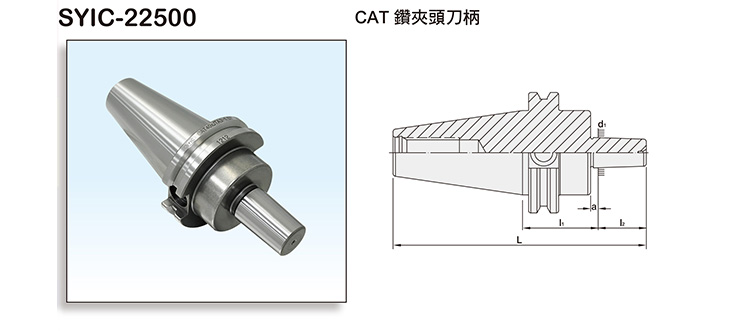

Product Name : CAT DRILL CHUCK ARBOR
Product Introduction
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For Drill Chuck with DIN 238.



INCHES

MODEL NO.TYPE - l1Ll2d1aWEIGHT (KGS)
SYIC - 22511 CAT40 x JTA2 - 1.57" 5.132 0.875 0.559 0.157 1.25
SYIC - 22512 CAT40 x JTA3 - 1.57" 5.475 1.219 0.811 0.197 1.25
SYIC - 22513 CAT40 x JTA6 - 1.57" 5.257 1 0.676 0.157 1.25
SYIC - 22515 CAT40 x JTA33 - 1.57" 5.257 1 0.624 0.157 1.25
SYIC - 22521 CAT50 x JTA2 - 1.57" 6.445 0.875 0.559 0.157 3.55
SYIC - 22523 CAT50 x JTA6 - 1.57" 6.57 1 0.676 0.157 3.65
SYIC - 22525 CAT50 x JTA33 - 1.57" 6.57 1 0.624 0.157 3.65
SYIC - 22527 CAT50 x JTA3 - 1.57" 6.789 1.219 0.811 0.197 3.65
