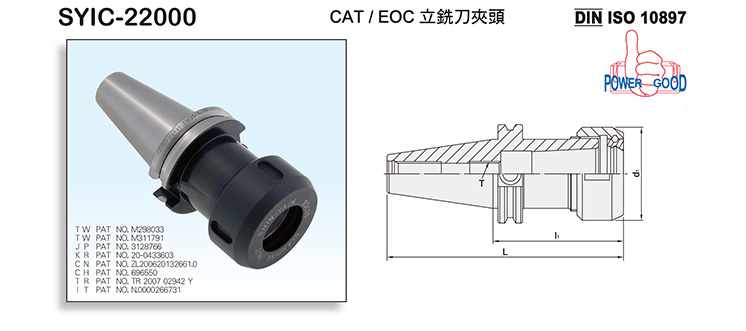

Product Name : CAT/EOC COLLET CHUCK
Product Introduction
  • Each collet chuck has been locked with a nut, but not including a spanner and collet.
  • The draw bar thread can make pull studs locked precisely and easily, including 45°, 60°, and 90°.
  • Suitable for heavy-duty cutting.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • While ordering, Power Good Nuts could be purchased separately for combination.



INCHES

MODEL NO.TYPE - l1Ld1TSIZE RANGEWEIGHT (KGS)
SYIC - 22011 CAT40 x EOC25 - 3.15" 5.837 2.362 M16 x 2.0P 0.125 ~ 1.000 1.55
SYIC - 22013 CAT40 x EOC25 - 4" 6.687 2.362 M16 x 2.0P 0.125 ~ 1.000 2.55
SYIC - 22015 CAT40 x EOC32 - 3.15" 5.837 2.835 M16 x 2.0P 0.125 ~ 1.000 1.95
SYIC - 22017 CAT40 x EOC32 - 4" 6.687 2.835 M16 x 2.0P 0.125 ~ 1.000 2.35
SYIC - 22021 CAT50 x EOC25 - 3.15" 7.15 2.362 M16 x 2.0P 0.125 ~ 1.000 3.25
SYIC - 22023 CAT50 x EOC25 - 4" 8 2.362 M16 x 2.0P 0.125 ~ 1.000 5.3
SYIC - 22025 CAT50 x EOC25 - 6" 10 2.362 M16 x 2.0P 0.125 ~ 1.000 4.4
SYIC - 22027 CAT50 x EOC32 - 3.15" 7.15 2.835 M24 x 2.0P 0.125 ~ 1.000 5.7
SYIC - 22029 CAT50 x EOC32 - 4.70" 8.7 2.835 M24 x 2.0P 0.125 ~ 1.000 6.1
