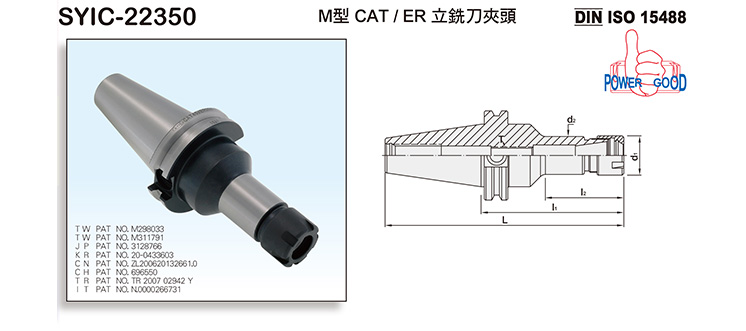

Product Name : CAT/ER COLLET CHUCK M TYPE
Product Introduction
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 22352 CAT40 x ER11M - 2.75" 5.437 1.175 0.63 0.59 M6 x 1.0P 0.0620 ~ 0.281 1.1
SYIC - 22354 CAT40 x ER11M - 4" 6.687 2.228 0.63 0.59 M6 x 1.0P 0.0620 ~ 0.281 1.2
SYIC - 22356 CAT40 x ER16M - 2.76" 5.447 1.323 0.87 0.83 M10 x 1.5P 0.0156 ~ 0.375 1.2
SYIC - 22358 CAT40 x ER16M - 4" 6.687 2.425 0.87 0.83 M10 x 1.5P 0.0156 ~ 0.375 1.3
SYIC - 22360 CAT40 x ER20M - 2.76" 5.447 1.323 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 1.2
SYIC - 22362 CAT40 x ER20M - 4" 6.687 2.196 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 1.5
SYIC - 22364 CAT50 x ER16M - 4" 8 1.927 0.87 0.83 M10 x 1.5P 0.0156 ~ 0.375 3.9
SYIC - 22366 CAT50 x ER16M - 6" 10 4.008 0.87 0.83 M10 x 1.5P 0.0156 ~ 0.375 4
SYIC - 22368 CAT50 x ER20M - 4" 8 2.127 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 4.2
SYIC - 22370 CAT50 x ER20M - 6" 10 4.127 1.102 1.06 M12 x 1.75P 0.0625 ~ 0.500 5.2
