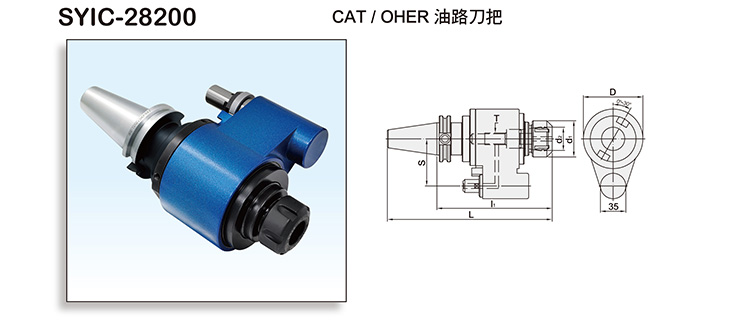

Product Name : CAT/ER OIL HOLE COLLET CHUCK
Product Introduction
  • First, bolt the coolant screw with the fixed block of & machine.



INCHES

MODEL NO.TYPELI1DSIZE RANGEd2 ERSTWEIGHT (KGS)
SYIC - 28202 CAT40 x OHER16 - 6.3" 8.987 6.3 3.228 0.0156 ~ 0.375 16 2.56 M10 3.8
SYIC - 28204 CAT40 x OHER20 - 6.3" 8.987 6.3 3.228 0.0625 ~ 0.5 20 2.56 M12 4.1
SYIC - 28206 CAT40 x OHER25 - 6.3" 8.987 6.3 3.228 0.0625 ~ 0.625 25 2.56 M15 4.3
SYIC - 28208 CAT40 x OHER32 - 6.3" 8.987 6.3 3.228 0.1250 ~ 0.75 32 2.56 M16 4.5
SYIC - 28210 CAT50 x OHER16 - 6.3" 10.3 6.3 3.858 0.0156 ~ 0.375 16 3.15 M10 7
SYIC - 28212 CAT50 x OHER20 - 6.3" 10.3 6.3 3.858 0.0625 ~ 0.5 20 3.15 M12 7.1
SYIC - 28214 CAT50 x OHER25 - 6.3" 10.3 6.3 3.858 0.0625 ~ 0.625 25 3.15 M15 7.2
SYIC - 28216 CAT50 x OHER32 - 6.3" 10.3 6.3 3.858 0.1250 ~ 0.75 32 3.15 M16 7.3
SYIC - 28218 CAT50 x OHER40 - 6.3" 10.3 6.3 3.858 0.1250 ~ 1.00 40 3.15 M20 7.5
