Product Name : CAT FACE MILL ARBOR
Product Introduction
  • d1 tolerance: h6.
  • Tolerance of 7/24 taper AT3.
  • The pre-balance can reach G6.3 3,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

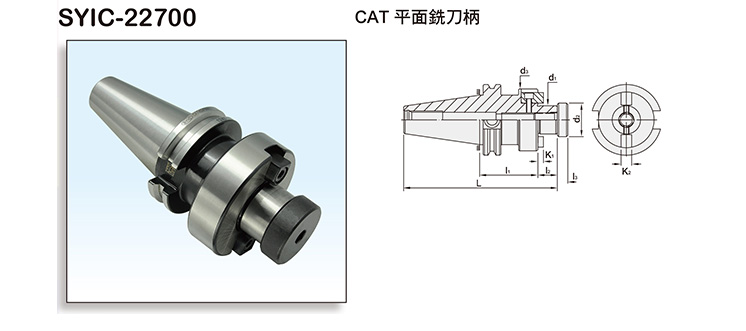

MODEL NO.TYPE d1 - l1Ll2l3d2d3K1K2WEIGHT (KGS)
SYIC - 22711 CAT40 x FMA3/4" - 1.37" 4.744 0.687 0.512 0.875 1.69 0.188 0.3125 1.5
SYIC - 22711 - 4 CAT40 x FMA3/4" - 4" 7.374 0.687 0.512 0.875 1.69 0.188 0.3125 1.7
SYIC - 22711 - 6 CAT40 x FMA3/4" - 6" 9.374 0.687 0.512 0.875 1.69 0.188 0.3125 1.9
SYIC - 22713 CAT40 x FMA1" - 2.06" 5.434 0.687 0.63 1.1875 2.19 0.188 0.375 1.45
SYIC - 22713 - 4 CAT40 x FMA1" - 4" 7.374 0.687 0.63 1.1875 2.19 0.188 0.375 2
SYIC - 22713 - 6 CAT40 x FMA1" - 6" 9.374 0.687 0.63 1.1875 2.19 0.188 0.375 2.75
SYIC - 22715 CAT40 x FMA1-1/4" - 2.21" 5.584 0.687 0.63 1.5 2.75 0.25 0.5 2.6
SYIC - 22715 - 4 CAT40 x FMA1-1/4" - 4" 7.374 0.687 0.63 1.5 2.75 0.25 0.5 2.75
SYIC - 22715 - 6 CAT40 x FMA1-1/4" - 6" 9.374 0.687 0.63 1.5 2.75 0.25 0.5 2.95
SYIC - 22717 CAT40 x FMA1-1/2" - 2.21" 5.837 0.938 0.807 1.875 3.81 0.349 0.625 2.7
SYIC - 22717 - 4 CAT40 x FMA1-1/2" - 4" 7.627 0.938 0.807 1.875 3.81 0.349 0.625 2.95
SYIC - 22721 CAT50 x FMA3/4" - 1.5" 6.187 0.687 0.512 0.875 - 0.188 0.3125 4.2
SYIC - 22721 - 3.5 CAT50 x FMA3/4" - 3.5" 8.187 0.687 0.512 0.875 1.69 0.188 0.3125 4.4
SYIC - 22721 - 5.5 CAT50 x FMA3/4" - 5.5" 10.187 0.687 0.512 0.875 1.69 0.188 0.3125 4.6
SYIC - 22723 CAT50 x FMA1" - 2" 6.687 0.687 0.63 1.1875 2.19 0.188 0.375 4.5
SYIC - 22723 - 4 CAT50 x FMA1" - 4" 8.687 0.687 0.63 1.1875 2.19 0.188 0.375 4.7
SYIC - 22723 - 6 CAT50 x FMA1" - 6" 10.687 0.687 0.63 1.1875 2.19 0.188 0.375 4.9
SYIC - 22725 CAT50 x FMA1-1/4" - 1.5" 6.187 0.687 0.63 1.5 2.75 0.25 0.5 4.7
SYIC - 22725 - 3.5 CAT50 x FMA1-1/4" - 3.5" 8.187 0.687 0.63 1.5 2.75 0.25 0.5 4.8
SYIC - 22725 - 5 CAT50 x FMA1-1/4" - 5" 9.687 0.687 0.63 1.5 2.75 0.25 0.5 5
SYIC - 22725 - 6 CAT50 x FMA1-1/4" - 6" 10.687 0.687 0.63 1.5 2.75 0.25 0.5 5.1
SYIC - 22727 CAT50 x FMA1-1/2" - 2.4" 7.338 0.938 0.807 1.875 3.81 0.349 0.625 5
SYIC - 22727 - 4 CAT50 x FMA1-1/2" - 4" 8.938 0.938 0.807 1.875 3.81 0.349 0.625 5.2
SYIC - 22727 - 6 CAT50 x FMA1-1/2" - 6" 10.938 0.938 0.807 1.875 3.81 0.349 0.625 5.4
SYIC - 22729 CAT50 x FMA2" - 2.4" 7.338 0.938 0.807 2.5 4.88 0.384 0.75 5.4
SYIC - 22729 - 4 CAT50 x FMA2" - 4" 8.938 0.938 0.807 2.5 4.88 0.384 0.75 5.6
