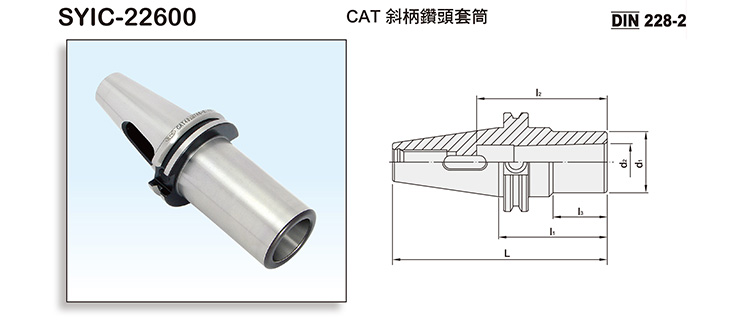

Product Name : CAT MORSE TAPER ADAPTER
Product Introduction
  • High accurate working process. Even though using prolonged drill, the concentricity is still within 0.015mm.



INCHES

MODEL NO.TYPE - l1Ll2l3d1d2WEIGHT (KGS)
SYIC - 22611 CAT40 x MTA1 - 1.6" 4.287 2.205 0.124 1 0.475 1.3
SYIC - 22613 CAT40 x MTA2 - 2" 4.687 2.638 0.323 1.25 0.7 1.5
SYIC - 22615 CAT40 x MTA3 - 2.75" 5.437 3.307 1.287 1.575 0.938 1.15
SYIC - 22617 CAT40 x MTA4 - 3.75" 6.437 4.213 2.372 1.75 1.23 1.2
SYIC - 22621 CAT50 x MTA1 - 2" 6 2.205 0.504 1 0.475 4.05
SYIC - 22623 CAT50 x MTA2 - 2" 6 2.638 0.504 1.25 0.7 4.4
SYIC - 22625 CAT50 x MTA3 - 2.5" 6.5 3.307 1.004 1.55 0.938 4.5
SYIC - 22627 CAT50 x MTA4 - 3.3" 7.3 4.213 1.804 1.75 1.23 4.9
SYIC - 22629 CAT50 x MTA5 - 4.1" 8.1 5.315 2.587 2.48 1.748 5.15
