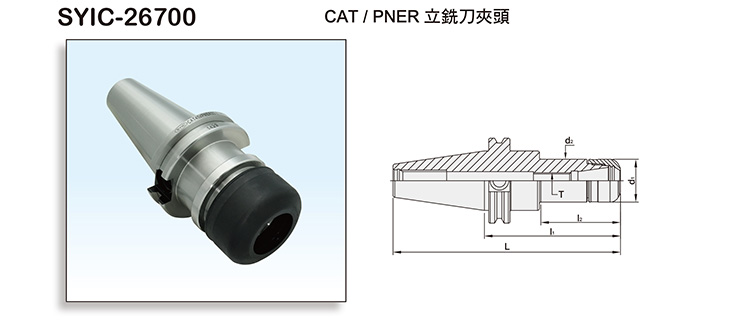

Product Name : CAT/PNER COLLET CHUCK
Product Introduction
  • Runout accuracy: within 3μm
  • The gauge line of PNER collet is shorter, so PNER collet sits well in the PNER holder better than conventional ER collet chucks, which improves the overall runout accuracy of PNER collet chuck and stability of machining.
  • Standard revolution: G2.5 25,000rpm, with an inspection report.



INCHES

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 26714 CAT40 x PNER16 - 2.5'' 5.187 1.06 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 1.05
SYIC - 26716 CAT40 x PNER16 - 4'' 6.687 2.43 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 1.35
SYIC - 26716-5 CAT40 x PNER16 - 5'' 7.687 3.43 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 1.65
SYIC - 26718 CAT40 x PNER20 - 3'' 5.684 1.5 1.25 1.25 M12 x 1.75P 0.125 ~ 0.500 1.25
SYIC - 26720 CAT40 x PNER20 - 4'' 6.687 2.5 1.25 1.25 M12 x 1.75P 0.125 ~ 0.500 1.65
SYIC - 26724 CAT40 x PNER25 - 4'' 6.687 2.54 1.57 1.57 M16 x 2.0P 0.125 ~ 0.625 1.85
SYIC - 26726 CAT40 x PNER32 - 3'' 5.684 1.51 1.96 1.96 M16 x 2.0P 0.125 ~ 0.750 1.16
SYIC - 26728 CAT40 x PNER32 - 4'' 6.687 2.52 1.96 1.96 M16 x 2.0P 0.125 ~ 0.750 1.5
SYIC - 26728-5 CAT40 x PNER32 - 5'' 7.687 3.51 1.96 1.96 M16 x 2.0P 0.125 ~ 0.750 1.75
SYIC - 26728-6 CAT40 x PNER32 - 6'' 8.687 4.51 1.96 1.96 M16 x 2.0P 0.125 ~ 0.750 2.15
SYIC - 26732 CAT40 x PNER40 - 4'' 6.687 2.26 2.48 2.48 M20 x 2.0P 0.250 ~ 1.000 1.8
SYIC - 26736 CAT50 x PNER16 - 4'' 8 2.03 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 4.05
SYIC - 26738 CAT50 x PNER16 - 6'' 10 4.03 1.18 1.18 M10 x 1.5P 0.125 ~ 0.375 4.4
SYIC - 26740 CAT50 x PNER20 - 4'' 8 2.14 1.25 1.25 M12 x 1.75P 0.125 ~ 0.500 4.2
SYIC - 26742 CAT50 x PNER20 - 6'' 10 4.14 1.25 1.25 M12 x 1.75P 0.125 ~ 0.500 4.45
SYIC - 26744 CAT50 x PNER25 - 4'' 8 2.38 1.57 1.57 M16 x 2.0P 0.125 ~ 0.625 4.15
SYIC - 26746 CAT50 x PNER25 - 6'' 10 4.38 1.57 1.57 M16 x 2.0P 0.125 ~ 0.625 4.5
SYIC - 26748 CAT50 x PNER32 - 4'' 8 2.42 1.96 1.96 M16 x 2.0P 0.125 ~ 0.750 4.35
SYIC - 26750 CAT50 x PNER32 - 6'' 10 4.42 1.96 1.96 M16 x 2.0P 0.125 ~ 0.750 4.6
SYIC - 26752 CAT50 x PNER40 - 4'' 8 2.48 2.48 2.48 M20 x 2.0P 0.250 ~ 1.000 5.26
SYIC - 26754 CAT50 x PNER40 - 6'' 10 4.48 2.48 2.48 M20 x 2.0P 0.250 ~ 1.000 6.36
