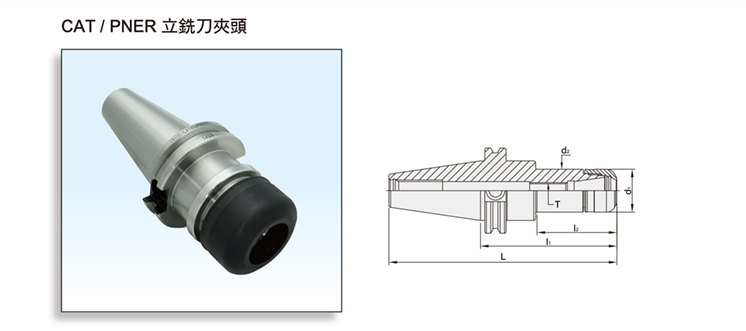

Product Name : CAT/PNER COLLET CHUCK
Product Introduction
MODEL NO.TYPE - l1Ll2d1d2SIZE RANGETWEIGHT (KGS)
SYIC - 26714 CAT40 x PNER16 - 2.5'' 5.187 1.06 1.18 1.18 0.125 ~ 0.375 M10 x 1.5P 1.05
SYIC - 26716 CAT40 x PNER16 - 4'' 6.687 2.43 1.18 1.18 0.125 ~ 0.375 M10 x 1.5P 1.35
SYIC - 26716-5 CAT40 x PNER16 - 5'' 7.687 3.43 1.18 1.18 0.125 ~ 0.375 M10 x 1.5P 1.65
SYIC - 26718 CAT40 x PNER20 - 3'' 5.684 1.5 1.25 1.25 0.125 ~ 0.50 M12 x 1.75P 1.25
SYIC - 26720 CAT40 x PNER20 - 4'' 6.687 2.5 1.25 1.25 0.125 ~ 0.50 M12 x 1.75P 1.65
SYIC - 26724 CAT40 x PNER25 - 4'' 6.687 2.54 1.57 1.57 0.125 ~ 0.625 M16 x 2.0P 1.85
SYIC - 26726 CAT40 x PNER32 - 3'' 5.684 1.51 1.96 1.96 0.125 ~ 0.75 M16 x 2.0P 1.16
SYIC - 26728 CAT40 x PNER32 - 4'' 6.687 2.52 1.96 1.96 0.125 ~ 0.75 M16 x 2.0P 1.5
SYIC - 26728-5 CAT40 x PNER32 - 5'' 7.687 3.51 1.96 1.96 0.125 ~ 0.75 M16 x 2.0P 1.75
SYIC - 26728-6 CAT40 x PNER32 - 6'' 8.687 4.51 1.96 1.96 0.125 ~ 0.75 M16 x 2.0P 2.15
SYIC - 26732 CAT40 x PNER40 - 4'' 6.687 2.26 2.48 2.48 0.250 ~ 1.00 M20 x 2.0P 1.8
SYIC - 26736 CAT50 x PNER16 - 4'' 8 2.03 1.18 1.18 0.125 ~ 0.375 M10 x 1.5P 4.05
SYIC - 26738 CAT50 x PNER16 - 6'' 10 4.03 1.18 1.18 0.125 ~ 0.375 M10 x 1.5P 4.4
SYIC - 26740 CAT50 x PNER20 - 4'' 8 2.14 1.25 1.25 0.125 ~ 0.50 M12 x 1.75P 4.2
SYIC - 26742 CAT50 x PNER20 - 6'' 10 4.14 1.25 1.25 0.125 ~ 0.50 M12 x 1.75P 4.45
SYIC - 26744 CAT50 x PNER25 - 4'' 8 2.38 1.57 1.57 0.125 ~ 0.625 M16 x 2.0P 4.15
SYIC - 26746 CAT50 x PNER25 - 6'' 10 4.38 1.57 1.57 0.125 ~ 0.625 M16 x 2.0P 4.5
SYIC - 26748 CAT50 x PNER32 - 4'' 8 2.42 1.96 1.96 0.125 ~ 0.75 M16 x 2.0P 4.35
SYIC - 26750 CAT50 x PNER32 - 6'' 10 4.42 1.96 1.96 0.125 ~ 0.75 M16 x 2.0P 4.6
SYIC - 26752 CAT50 x PNER40 - 4'' 8 2.48 2.48 2.48 0.250 ~ 1.00 M20 x 2.0P 5.26
SYIC - 26754 CAT50 x PNER40 - 6'' 10 4.48 2.48 2.48 0.250 ~ 1.00 M20 x 2.0P 6.36
