Pull Stud
Product Name : Pull Stud
Product Description


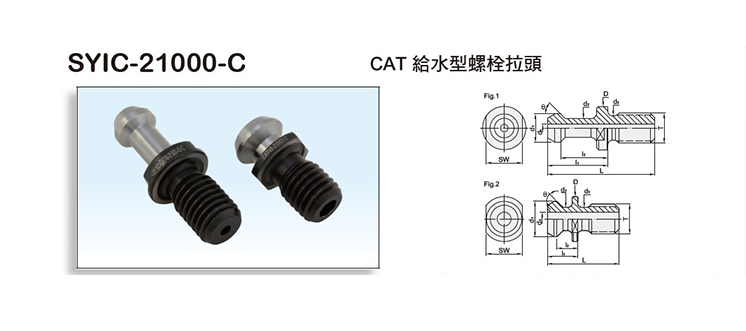

CNC Pull Studs for Precision Machining

  • This pull stud is available for BT, CAT, DAT, ISO, and customized orders are accepted.
  • The hardness of the clamping part is increased and has higher wear resistance, ensuring safety during the machining process.
  • Use first-class thread gauge GO and NO-GO to examine the thread part. Thread precision guaranteed.
  • Please make sure that the type of pull studs is correct and conforms to your machine. Using wrong pull studs can cause damage to the machine spindle, tool holder and may create a safety threat.
series:

BT PULL STUD

proimages/Products/Accessories/Pull_stud/BT_figure..jpg
W/O Coolant
MODEL NO.TYPELl1l2Dd1d2d3d4θTSWFigWEIGHT
(KGS)
5230-010-45-00 BT30-45° 43 23 18 16.5 11 7 12.5 - 45° M12 13 1 0.04
5230-011-45-00 BT40-45° 60 35 28 23 15 10 17 - 45° M16 19 1 0.1
5230-012-45-00 BT50-45° 85 45 35 38 23 17 25 - 45° M24 30 1 0.3
5230-010-60-00 BT30-60° 43 23 18 16.5 11 7 12.5 - 60° M12 13 1 0.04
5230-011-60-00 BT40-60° 60 35 28 23 15 10 17 - 60° M16 19 1 0.1
5230-012-60-00 BT50-60° 85 45 35 38 23 17 25 - 60° M24 30 1 0.3
5230-010-90-00 BT30-90° 43 23 18 16.5 11 7 12.5 - 90° M12 13 1 0.04
5230-011-90-00 BT40-90° 60 35 28 23 15 10 17 - 90° M16 19 1 0.1
5230-012-90-00 BT50-90° 85 45 35 38 23 17 25 - 90° M24 30 1 0.3
Coolant Thru
MODEL NO.TYPELl1l2Dd1d2d3d4θTSWFigWEIGHT
(KGS)
5231-010-45-00 BT30-45°-C 43 23 18 16.5 11 7 12.5 3 45° M12 13 2 0.1
5231-011-15-00 BT40-15°-C 54 29 23 23 19 14 17 7 15° M16 19 2 0.1
5231-011-45-00 BT40-45°-C 60 35 28 23 15 10 17 4 45° M16 19 2 0.1
5231-011-45-01 BT40-45°-C-MAZAK 44.1 19.1 14.02 22 18.79 12.44 17 7 45° M16 19 2 0.1
5231-012-45-00 BT50-45°-C 85 45 35 38 23 17 25 6 45° M24 30 2 0.3
5231-012-45-01 BT50-45°-C-MAZAK 65.4 25.4 17.78 35.5 28.95 20.8 25 10 45° M24 30 2 0.3
5231-011-60-00 BT40-60°-C 60 35 28 23 15 10 17 4 60° M16 19 2 0.1
5231-012-60-00 BT50-60°-C 85 45 35 38 23 17 25 6 60° M24 30 2 0.3
5231-011-90-00 BT40-90°-C 60 35 28 23 15 10 17 4 90° M16 19 2 0.1
5231-012-90-00 BT50-90°-C 85 45 35 38 23 17 25 6 90° M24 30 2 0.3
series:
The Installation and Disassembly Way for Pull Stud
