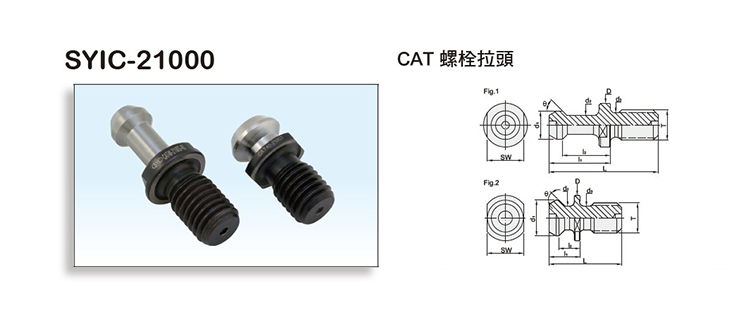

Product Name : CAT Pull Studs
Product Introduction
  • Please make sure the pull stud conforms to the machine type.
MODEL NO.TYPEDd1d2d3Ll1l2θSWT-UNCFigWEIGHT (KGS)
SYIC - 21003 CAT40 - ANSI 0.94 0.74 0.49 0.49 1.5 0.64 0.44 45° 0.75 5/8" - 11 2 0.09
SYIC - 21005 CAT50 - ANSI 1.44 1.14 0.82 0.82 2.3 1 0.7 45° 1.25 1" - 8 2 0.25
SYIC - 21003 - 45 CAT40 - MAS - I 0.905 0.59 0.394 0.512 2.25 1.266 0.99 45° 0.748 5/8" - 11 1 0.09
SYIC - 21003 - 60 CAT40 - MAS - II 0.905 0.59 0.394 0.512 2.25 1.266 0.99 60° 0.748 5/8" - 11 1 0.09
SYIC - 21003 - 90 CAT40 - MAS - III 0.905 0.59 0.394 0.512 2.25 1.266 0.99 90° 0.748 5/8" - 11 1 0.09
SYIC - 21005 - 45 CAT50 - MAS - I 1.496 0.906 0.669 0.827 3.346 1.772 1.378 45° 1.181 1" - 8 1 0.25
SYIC - 21005 - 60 CAT50 - MAS - II 1.496 0.906 0.669 0.827 3.346 1.772 1.378 60° 1.181 1" - 8 1 0.25
SYIC - 21005 - 90 CAT50 - MAS - III 1.496 0.906 0.669 0.827 3.346 1.772 1.378 90° 1.181 1" - 8 1 0.25
