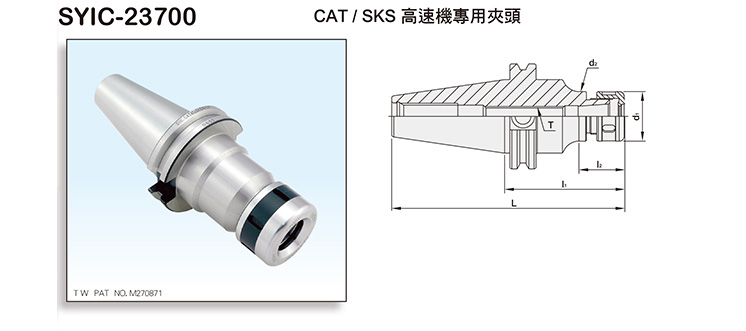

Product Name : CAT/SBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Runout is within 5μ(4D length).
  • SKS Collet taper: 4°, increasing holding power, concentricity and rigidity.
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 23712 CAT40 x SKS6 - 3.5" 6.187 1.594 0.709 0.708 M8 x 1.25P 0.0625 ~ 0.1875 1.05
SYIC - 23714 CAT40 x SKS6 - 4" 6.687 2.094 0.709 0.708 M8 x 1.25P 0.0625 ~ 0.1875 1.65
SYIC - 23716 CAT40 x SKS10 - 3.5" 6.187 1.703 1.181 1.086 M12 x 1.75P 0.1250 ~ 0.375 1.05
SYIC - 23718 CAT40 x SKS10 - 4" 6.687 2.203 1.181 1.086 M12 x 1.75P 0.1250 ~ 0.375 1.65
SYIC - 23720 CAT40 x SKS13 - 3.5" 6.187 2.004 1.378 1.299 M12 x 1.75P 0.1250 ~ 0.50 1.05
SYIC - 23720-4 CAT40 x SKS13 - 4" 6.687 2.504 1.378 1.299 M12 x 1.75P 0.1250 ~ 0.50 1.65
SYIC - 23722 CAT40 x SKS16 - 3.5" 6.187 2.034 1.574 1.575 M18 x 1.5P 0.1250 ~ 0.625 1.35
SYIC - 23724 CAT40 x SKS16 - 4" 6.687 2.534 1.574 1.575 M18 x 1.5P 0.1250 ~ 0.625 2.1
SYIC - 23726 CAT40 x SKS20 - 3.5" 6.187 2.042 1.909 1.909 M22 x 1.5P 0.1250 ~ 0.75 1.35
SYIC - 23726-4 CAT40 x SKS20 - 4" 6.687 2.622 1.909 1.909 M22 x 1.5P 0.1250 ~ 0.75 2.1
SYIC - 23732 CAT40 x SKS25 - 3.5" 6.187 2.122 2.165 2.165 M28 x 2.0P 0.1250 ~ 1.00 1.35
SYIC - 23734 CAT40 x SKS25 - 4" 6.687 2.622 2.165 2.165 M28 x 2.0P 0.1250 ~ 1.00 2.2
SYIC - 23742 CAT50 x SKS6 - 3.5" 7.5 1.728 0.709 0.708 M8 x 1.25P 0.0625 ~ 0.1875 3.6
SYIC - 23744 CAT50 x SKS6 - 4" 8 2.228 0.709 0.708 M8 x 1.25P 0.0625 ~ 0.1875 4
SYIC - 23746 CAT50 x SKS10 - 4" 8 2.228 1.181 1.06 M12 x 1.75P 0.1250 ~ 0.375 3.8
SYIC - 23748 CAT50 x SKS10 - 4.5" 8.5 2.408 1.181 1.06 M12 x 1.75P 0.1250 ~ 0.375 4
SYIC - 23750 CAT50 x SKS13 - 4" 8 2.425 1.378 1.299 M12 x 1.75P 0.1250 ~ 0.50 3.8
SYIC - 23750-4.5 CAT50 x SKS13 - 4.5" 8.5 2.925 1.378 1.299 M12 x 1.75P 0.1250 ~ 0.50 4
SYIC - 23752 CAT50 x SKS16 - 4" 8 2.056 1.574 1.575 M18 x 1.5P 0.1250 ~ 0.625 4
SYIC - 23754 CAT50 x SKS16 - 4.5" 8.5 2.556 1.574 1.575 M18 x 1.5P 0.1250 ~ 0.625 4.15
SYIC - 23756 CAT50 x SKS20 - 4" 8 2.504 1.909 1.909 M22 x 1.5P 0.1250 ~ 0.75 4
SYIC - 23756-4.5 CAT50 x SKS20 - 4.5" 8.5 3.004 1.909 1.909 M22 x 1.5P 0.1250 ~ 0.75 4.15
SYIC - 23762 CAT50 x SKS25 - 4" 8 2.167 2.165 2.165 M28 x 2.0P 0.1250 ~ 1.00 4.2
SYIC - 23764 CAT50 x SKS25 - 4.5" 8.5 2.667 2.165 2.165 M28 x 2.0P 0.1250 ~ 1.00 4.4
