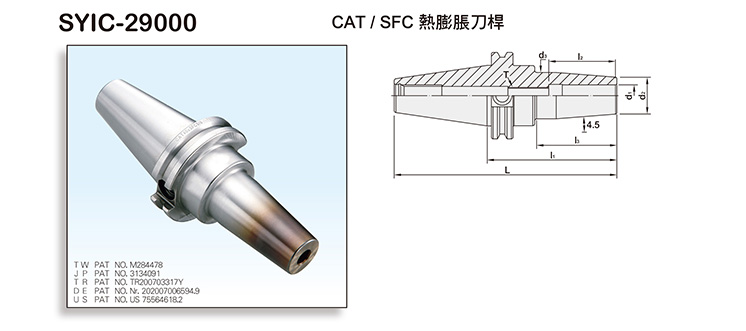

Product Name : CAT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.



INCHES

MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 29002 CAT40 x SFC1/8" - 3.5" 6.187 0.79 1.75 0.36 0.63 M6 x 1.0P 18 1.03
SYIC - 29004 CAT40 x SFC1/8" - 5" 7.687 0.79 3.56 0.36 0.87 - 18 1.11
SYIC - 29006 CAT40 x SFC3/16" - 3.5" 6.187 0.79 1.75 0.43 0.7 M6 x 1.0P 18 1.04
SYIC - 29008 CAT40 x SFC3/16" - 5" 7.687 0.79 3.22 0.43 0.71 - 18 1.10
SYIC - 29010 CAT40 x SFC1/4" - 3" 5.687 1.42 1.56 0.71 0.94 M5 x 0.8P 18 1.09
SYIC - 29011 CAT40 x SFC1/4" - 3.5" 6.187 1.42 2 0.71 0.94 M5 x 0.8P 18 1.12
SYIC - 29013 CAT40 x SFC1/4" - 5" 7.687 1.42 3.12 0.71 1.06 M5 x 0.8P 18 1.29
SYIC - 29014 CAT40 x SFC1/4" - 6" 8.687 1.42 4.44 0.71 1.37 M5 x 0.8P 18 1.49
SYIC - 29016 CAT40 x SFC5/16" - 3.5" 6.187 1.42 2.06 0.79 1.06 M6 x 1.0P 35 1.14
SYIC - 29018 CAT40 x SFC5/16" - 5" 7.687 1.42 3.12 0.79 1.06 M6 x 1.0P 35 1.30
SYIC - 29020 CAT40 x SFC3/8" - 3" 5.687 1.65 1.56 0.94 1.18 M8 x 1.25P 65 1.15
SYIC - 29021 CAT40 x SFC3/8" - 3.75" 6.437 1.65 2.31 0.94 1.26 M8 x 1.25P 65 1.24
SYIC - 29023 CAT40 x SFC3/8" - 5" 7.687 1.65 3.27 0.94 1.37 M8 x 1.25P 65 1.46
SYIC - 29024 CAT40 x SFC3/8" - 6" 8.687 1.65 4.44 0.94 1.37 M8 x 1.25P 65 1.66
SYIC - 29026 CAT40 x SFC1/2" - 3" 5.687 1.85 1.56 1.1 1.34 M10 x 1.5P 110 1.19
SYIC - 29027 CAT40 x SFC1/2" - 3.75" 6.437 1.85 2.31 1.1 1.34 M10 x 1.5P 110 1.30
SYIC - 29029 CAT40 x SFC1/2" - 5" 7.687 1.85 3.44 1.1 1.37 M10 x 1.5P 110 1.52
SYIC - 29030 CAT40 x SFC1/2" - 6" 8.687 1.85 4.35 1.1 1.37 M10 x 1.5P 110 1.68
SYIC - 29032 CAT40 x SFC5/8" - 3.75" 6.437 1.97 2.17 1.06 1.34 M12 x 1.75P 200 1.27
SYIC - 29034 CAT40 x SFC3/4" - 3" 5.687 2.04 1.62 1.42 1.65 M16 x 2.0P 320 1.24
SYIC - 29036 CAT40 x SFC3/4" - 4" 6.687 2.04 2.62 1.42 1.65 M16 x 2.0P 320 1.49
SYIC - 29037 CAT40 x SFC3/4" - 5" 7.687 2.04 3.44 1.26 1.37 M16 x 2.0P 320 1.48
SYIC - 29038 CAT40 x SFC3/4" - 6" 8.687 2.04 4.44 1.26 1.37 M16 x 2.0P 320 1.64
SYIC - 29040 CAT40 x SFC1" - 3" 5.687 2.09 1.62 1.81 2.04 M20 x 2.0P 500 1.34
SYIC - 29042 CAT40 x SFC1" - 4" 6.687 2.28 2.62 1.81 2.09 M20 x 2.0P 500 1.73
SYIC - 29044 CAT40 x SFC1" - 6" 8.687 2.28 4.54 1.81 2.09 M20 x 2.0P 500 2.51
SYIC - 29046 CAT40 x SFC1-1/4" - 4" 6.687 2.28 2.62 1.81 2.09 M20 x 2.0P 500 1.60
