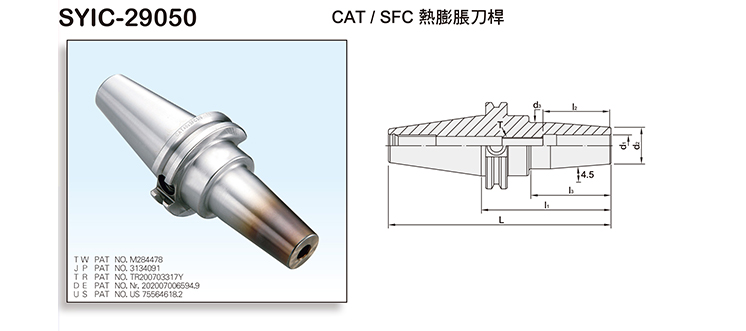

Product Name : CAT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.



INCHES

MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 29052 CAT50 x SFC3/16" - 3.54" 7.54 0.79 1.98 0.43 0.74 M6 x 1.0P 18 3.04
SYIC - 29054 CAT50 x SFC1/4" - 3.54" 7.54 1.42 2.04 0.71 1.03 M5 x 0.8P 18 3.13
SYIC - 29056 CAT50 x SFC5/16" - 3.54" 7.54 1.42 2.04 0.79 1.06 M6 x 1.0P 35 3.15
SYIC - 29058 CAT50 x SFC3/8" - 3.94" 7.94 1.65 2.36 0.94 1.26 M8 x 1.25P 65 3.27
SYIC - 29060 CAT50 x SFC1/2" - 3.94" 7.94 1.85 2.36 1.1 1.34 M10 x 1.5P 110 3.33
SYIC - 29062 CAT50 x SFC5/8" - 3.94" 7.94 1.97 2.36 1.06 1.34 M12 x 1.75P 200 3.29
SYIC - 29064 CAT50 x SFC3/4" - 4.13" 8.13 2.04 2.71 1.42 1.65 M16 x 2.0P 320 3.52
SYIC - 29066 CAT50 x SFC3/4" - 6" 10 2.04 3.91 1.42 1.65 M16 x 2.0P 320 4.03
SYIC - 29068 CAT50 x SFC1" - 4.13" 8.13 2.28 2.71 1.81 2.09 M20 x 2.0P 500 3.81
SYIC - 29070 CAT50 x SFC1" - 6" 10 2.28 4.12 1.81 2.09 M20 x 2.0P 500 4.56
SYIC - 29072 CAT50 x SFC1-1/4" - 4.13" 8.13 2.28 2.63 1.81 2.09 M20 x 2.0P 500 3.68
SYIC - 29074 CAT50 x SFC1-1/4" - 4.72" 8.72 2.28 3.22 1.81 2.09 M20 x 2.0P 550 3.9
SYIC - 29076 CAT50 x SFC1-1/4" - 6" 10 2.28 4.12 1.81 2.09 M20 x 2.0P 550 4.43
