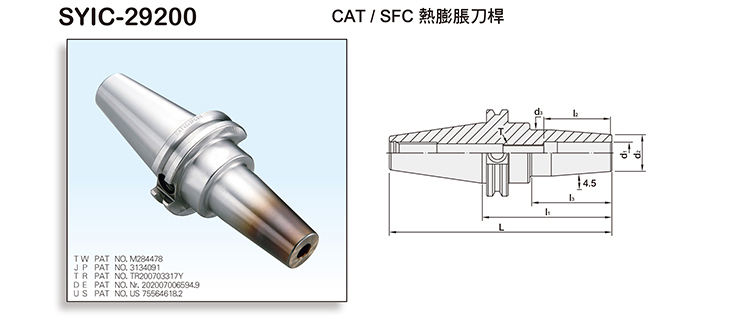

Product Name : CAT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.



INCHES

MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 29202 CAT40 x SFC3 - 100 168.249 18 55 9 17.7 M8 x 1.25P 18 1.04
SYIC - 29204 CAT40 x SFC4 - 100 168.249 20 55 10 18.7 M8 x 1.25P 18 1.06
SYIC - 29206 CAT40 x SFC5 - 100 168.249 20 60 16 22 M8 x 1.25P 18 1.12
SYIC - 29208 CAT40 x SFC6 - 100 168.249 36 54 21 27 M5 x 0.8P 18 1.23
SYIC - 29210 CAT40 x SFC6 - 150 218.249 36 104 21 27 M5 x 0.8P 18 1.39
SYIC - 29212 CAT40 x SFC8 - 100 168.249 36 54 21 27 M6 x 1.0P 35 1.22
SYIC - 29214 CAT40 x SFC8 - 150 218.249 36 104 21 27 M6 x 1.0P 35 1.39
SYIC - 29216 CAT40 x SFC10 - 100 168.249 42 56 24 32 M8 x 1.25P 65 1.28
SYIC - 29218 CAT40 x SFC10 - 150 218.249 42 106 24 32 M8 x 1.25P 65 1.53
SYIC - 29220 CAT40 x SFC12 - 100 168.249 47 59 24 33.3 M10 x 1.5P 110 1.27
SYIC - 29222 CAT40 x SFC12 - 150 218.249 47 104 24 32 M10 x 1.5P 110 1.52
SYIC - 29224 CAT40 x SFC14 - 95.3 163.549 47 59 27 34 M10 x 1.5P 150 1.27
SYIC - 29226 CAT40 x SFC14 - 100 168.249 47 59 27 34 M10 x 1.5P 150 1.31
SYIC - 29228 CAT40 x SFC14 - 152.4 220.649 47 112 27 34 M10 x 1.5P 150 1.62
SYIC - 29230 CAT40 x SFC16 - 95.3 163.549 50 54 27 34 M12 x 1.75P 200 1.25
SYIC - 29232 CAT40 x SFC16 - 100 168.249 50 59 27 34 M12 x 1.75P 200 1.28
SYIC - 29234 CAT40 x SFC16 - 160 228.249 50 119 27 34 M12 x 1.75P 200 1.64
SYIC - 29236 CAT40 x SFC18 - 100 168.249 50 63 33 42 M12 x 1.75P 250 1.43
SYIC - 29238 CAT40 x SFC20 - 80 148.249 52 42 33 39 M16 x 2.0P 320 1.2
