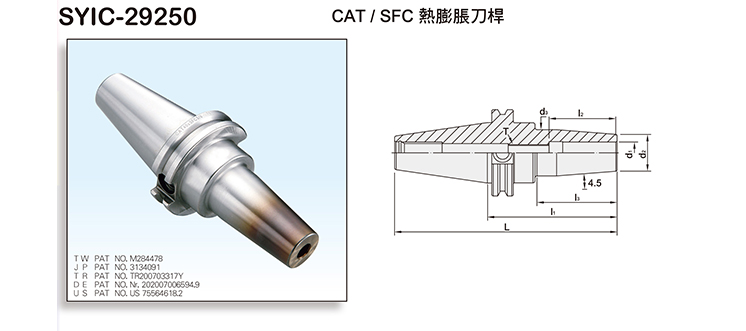

Product Name : CAT/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.



MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 29252 CAT50 x SFC6 - 100 201.6 36 62 21 27 M5 x 0.8P 18 3.21
SYIC - 29254 CAT50 x SFC6 - 150 251.6 36 101 21 27 M5 x 0.8P 18 3.42
SYIC - 29256 CAT50 x SFC8 - 100 201.6 36 60 21 27 M6 x 1.0P 35 3.21
SYIC - 29258 CAT50 x SFC8 - 150 251.6 36 101 21 27 M6 x 1.0P 35 3.41
SYIC - 29260 CAT50 x SFC10 - 100 201.6 42 60 24 32 M8 x 1.25P 65 3.27
SYIC - 29262 CAT50 x SFC10 - 150 251.6 42 91 24 32 M8 x 1.25P 65 3.74
SYIC - 29264 CAT50 x SFC12 - 100 201.6 47 62 24 32 M10 x 1.5P 110 3.26
SYIC - 29266 CAT50 x SFC12 - 150 251.6 47 91 24 32 M10 x 1.5P 110 3.71
SYIC - 29268 CAT50 x SFC14 - 100 201.6 47 62 27 34 M10 x 1.5P 150 3.31
SYIC - 29270 CAT50 x SFC14 - 150 251.6 47 92 27 34 M10 x 1.5P 150 3.79
SYIC - 29272 CAT50 x SFC16 - 100 201.6 50 62 27 34 M12 x 1.75P 200 3.29
SYIC - 29274 CAT50 x SFC16 - 160 261.6 50 102 27 34 M12 x 1.75P 200 3.83
SYIC - 29276 CAT50 x SFC18 - 100 201.6 50 62 33 42 M12 x 1.75P 250 3.45
SYIC - 29278 CAT50 x SFC20 - 80 181.6 52 35 33 42 M16 x 2.0P 320 3.26
SYIC - 29280 CAT50 x SFC25 - 100 201.6 58 62 44 53 M20 x 2.0P 500 3.69
SYIC - 29282 CAT50 x SFC32 - 100 201.6 58 62 44 53 M20 x 2.0P 550 3.55
