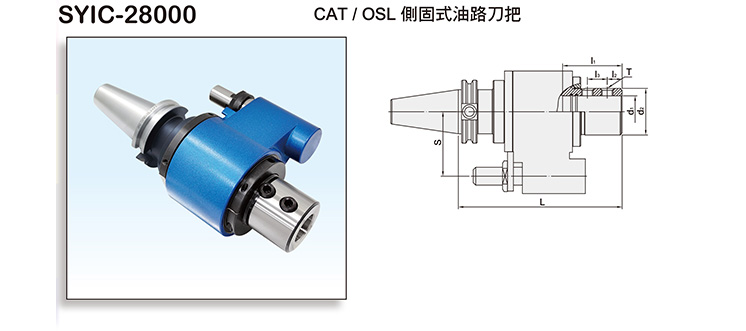

Product Name : CAT/SIDE LOCK OIL HOLE HOLDER
Product Introduction
  • Please confirm the "S" size when ordering.
  • Please confirm the machine centers high pressure pump.
  • Water pressure up to 7 kgf/cm2.
  • Max. revolution: 3000 rpm.



INCHES

MODEL NO.TYPE d1 - Ld2l1l2l3STWEIGHT (KGS)
SYIC - 28001 CAT40 x OSL16 - 6.5" 1.83 1.89 0.98 - 2.56 M12 x 1.75P 3.5
SYIC - 28003 CAT40 x OSL20 - 6.5" 1.83 1.97 0.98 - 2.56 M12 x 1.75P 3.5
SYIC - 28005 CAT40 x OSL25 - 6.5" 1.83 2.2 0.59 0.79 2.56 M12 x 1.75P 3.5
SYIC - 28007 CAT40 x OSL32 - 6.5" 1.85 2.36 0.59 0.79 2.56 M12 x 1.75P 3.5
SYIC - 28002 CAT40 x OSL16 - 6.5"S 1.83 1.89 0.98 - 2.36 M12 x 1.75P 3.5
SYIC - 28004 CAT40 x OSL20 - 6.5"S 1.83 1.97 0.98 - 2.36 M12 x 1.75P 3.5
SYIC - 28006 CAT40 x OSL25 - 6.5"S 1.83 2.2 0.59 0.79 2.36 M12 x 1.75P 3.5
SYIC - 28008 CAT40 x OSL32 - 6.5"S 1.85 2.36 0.59 0.79 2.36 M12 x 1.75P 3.8
SYIC - 28009 CAT50 x OSL16 - 6.5" 2.2 1.89 0.98 - 3.15 M14 x 2.0P 7
SYIC - 28011 CAT50 x OSL20 - 6.5" 2.2 1.97 0.98 - 3.15 M12 x 1.75P 7.5
SYIC - 28013 CAT50 x OSL25 - 6.5" 2.2 2.2 0.59 0.79 3.15 M16 x 2.0P 7.5
SYIC - 28015 CAT50 x OSL32 - 6.69" 2.2 2.36 0.59 0.79 3.15 M16 x 2.0P 7.8
SYIC - 28017 CAT50 x OSL40 - 6.69" 2.2 2.44 0.59 0.98 3.15 M14 x 2.0P 8.5
SYIC - 28019 CAT50 x OSL16 - 6.5"M 2.2 1.89 0.59 - 3.23 M14 x 2.0P 7.1
SYIC - 28021 CAT50 x OSL20 - 6.5"M 2.2 1.97 0.98 - 3.23 M12 x 1.75P 7.6
SYIC - 28023 CAT50 x OSL25 - 6.5"M 2.2 2.2 0.59 0.79 3.23 M16 x 2.0P 7.7
SYIC - 28025 CAT50 x OSL32 - 6.69"M 2.2 2.36 0.59 0.79 3.23 M16 x 2.0P 7.8
SYIC - 28027 CAT50 x OSL40 - 6.69"M 2.2 2.44 0.59 0.98 3.23 M14 x 2.0P 8.5
SYIC - 28029 CAT50 x OSL16 - 6.5"L 2.2 1.89 0.98 - 3.35 M14 x 2.0P 7.2
SYIC - 28031 CAT50 x OSL20 - 6.5"L 2.2 1.97 0.98 - 3.35 M12 x 1.75P 7.8
SYIC - 28033 CAT50 x OSL25 - 6.5"L 2.2 2.2 0.59 0.79 3.35 M16 x 2.0P 7.8
SYIC - 28035 CAT50 x OSL32 - 6.69"L 2.2 2.36 0.59 0.79 3.35 M16 x 2.0P 8
SYIC - 28037 CAT50 x OSL40 - 6.69"L 2.2 2.44 0.59 0.98 3.35 M14 x 2.0P 8.7
