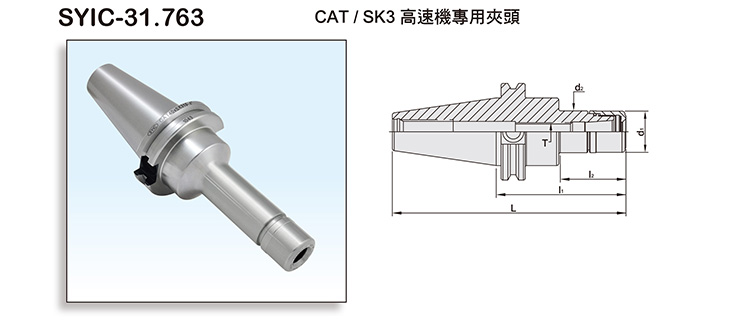

Product Name : CAT/SK3 COLLET CHUCK
Product Introduction
  • Runout is within 5μ(4D length).
  • SKS Collet taper: 4°, increasing holding power, concentricity and rigidity.
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

MODEL NO.TYPE - l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 31.763.06.350 CAT40 x SK306 - 3.5" 6.187 1.438 0.709 0.787 M8 x 1.25P 0.0625 ~ 0.1875 1.05
SYIC - 31.763.06.400 CAT40 x SK306 - 4" 6.687 1.938 0.709 0.787 M8 x 1.25P 0.0625 ~ 0.1875 1.65
SYIC - 31.763.10.350 CAT40 x SK310 - 3.5" 6.187 1.627 1.063 1.083 M12 x 1.75P 0.1250 ~ 0.375 1.05
SYIC - 31.763.10.400 CAT40 x SK310 - 4" 6.687 2.127 1.063 1.083 M12 x 1.75P 0.1250 ~ 0.375 1.65
SYIC - 31.763.13.350 CAT40 x SK313 - 3.5" 6.187 2.004 1.339 1.354 M12 x 1.75P 0.1250 ~ 0.50 1.05
SYIC - 31.763.13.400 CAT40 x SK313 - 4" 6.687 2.504 1.339 1.354 M12 x 1.75P 0.1250 ~ 0.50 1.65
SYIC - 31.763.16.350 CAT40 x SK316 - 3.5" 6.187 2.034 1.575 1.594 M18 x 1.5P 0.1250 ~ 0.625 1.35
SYIC - 31.763.16.400 CAT40 x SK316 - 4" 6.687 2.534 1.575 1.594 M18 x 1.5P 0.1250 ~ 0.625 2.1
SYIC - 32.763.06.350 CAT50 x SK306 - 3.5" 7.5 1.728 0.709 0.787 M8 x 1.25P 0.0625 ~ 0.1875 3.6
SYIC - 32.763.06.400 CAT50 x SK306 - 4" 8 2.228 0.709 0.787 M8 x 1.25P 0.0625 ~ 0.1875 4
SYIC - 32.763.10.400 CAT50 x SK310 - 4" 8 2.562 1.063 1.083 M12 x 1.75P 0.1250 ~ 0.375 3.8
SYIC - 32.763.10.450 CAT50 x SK310 - 4.5" 8.5 2.115 1.063 1.083 M12 x 1.75P 0.1250 ~ 0.375 4
SYIC - 32.763.13.400 CAT50 x SK313 - 4" 8 2.425 1.339 1.354 M12 x 1.75P 0.1250 ~ 0.50 3.8
SYIC - 32.763.13.450 CAT50 x SK313 - 4.5" 8.5 2.925 1.339 1.354 M12 x 1.75P 0.1250 ~ 0.50 4
SYIC - 32.763.16.400 CAT50 x SK316 - 4" 8 1.871 1.575 1.594 M18 x 1.5P 0.1250 ~ 0.625 4
SYIC - 32.763.16.450 CAT50 x SK316 - 4.5" 8.5 2.371 1.575 1.594 M18 x 1.5P 0.1250 ~ 0.625 4.15
