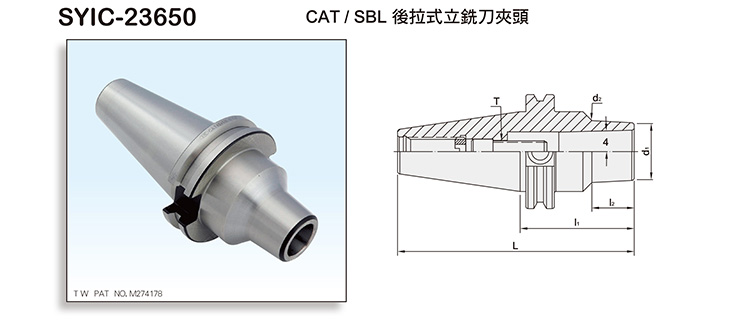

Product Name : CAT/SKS COLLET CHUCK
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



SCREW TIGHTENING TORQUE:

TYPETTORQUE
N.mN.m 1bf-ft
SBL6 M6 x 1.0P 12 9
SBL12 M10 x 1.5P 59 43
SBL20 M12 x 1.75P 100 74



INCHES

MODEL NO.TYPELl2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 23654 CAT40 x SBL6 - 3" 5.687 1.094 0.551 0.648 M6 x 1.0P 0.125 ~ 0.25 1
SYIC - 23656 CAT40 x SBL6 - 4" 6.687 2.119 0.551 0.738 M6 x 1.0P 0.125 ~ 0.25 1.25
SYIC - 23658 CAT40 x SBL6 - 6" 8.687 4.174 0.551 0.917 M6 x 1.0P 0.125 ~ 0.25 1.2
SYIC - 23660 CAT40 x SBL12 - 2.5" 5.187 0.824 1.024 1.153 M10 x 1.5P 0.125 ~ 0.50 1.45
SYIC - 23662 CAT40 x SBL12 - 4" 6.687 2.233 1.024 1.258 M10 x 1.5P 0.125 ~ 0.50 1.2
SYIC - 23664 CAT40 x SBL12 - 6" 8.687 4.494 1.024 1.495 M10 x 1.5P 0.125 ~ 0.50 1.45
SYIC - 23666 CAT40 x SBL20 - 2.5" 5.187 0.979 1.38 1.463 M12 x 1.75P 0.125 ~ 0.75 1.2
SYIC - 23668 CAT40 x SBL20 - 4" 6.687 2.547 1.378 1.6 M12 x 1.75P 0.125 ~ 0.75 1.6
SYIC - 23670 CAT40 x SBL20 - 6" 8.687 4.26 1.378 - M12 x 1.75P 0.125 ~ 0.75 1.5
SYIC - 23671 CAT40 x SBL25 - 3.25'' 5.937 1.86 1.575 1.73 M16 x 2.0P 0.125 ~ 1.00 1.4
SYIC - 23671-4 CAT40 x SBL25 - 4'' 6.687 2.615 1.575 1.75 M16 x 2.0P 0.125 ~ 1.00 1.6
SYIC - 23672 CAT50 x SBL6 - 3.5" 7.5 1.562 0.551 0.71 M6 x 1.0P 0.125 ~ 0.25 1.7
SYIC - 23674 CAT50 x SBL6 - 4.5" 8.5 2.379 0.551 0.8 M6 x 1.0P 0.125 ~ 0.25 1.5
SYIC - 23676 CAT50 x SBL6 - 6" 10 3.962 0.551 0.966 M6 x 1.0P 0.125 ~ 0.25 1.7
SYIC - 23678 CAT50 x SBL12 - 2.5" 6.5 0.934 1.024 1.109 M10 x 1.5P 0.125 ~ 0.50 4
SYIC - 23680 CAT50 x SBL12 - 4.5" 8.5 2.746 1.024 1.267 M10 x 1.5P 0.125 ~ 0.50 4.1
SYIC - 23682 CAT50 x SBL12 - 6" 10 4.246 1.024 1.398 M10 x 1.5P 0.125 ~ 0.50 4.2
SYIC - 23684 CAT50 x SBL20 - 2.5" 6.5 0.746 1.378 1.443 M12 x 1.75P 0.125 ~ 0.75 4.3
SYIC - 23686 CAT50 x SBL20 - 4.5" 8.5 2.746 1.378 1.618 M12 x 1.75P 0.125 ~ 0.75 4.6
SYIC - 23688 CAT50 x SBL20 - 6" 10 4.116 1.378 1.737 M12 x 1.75P 0.125 ~ 0.75 4.7
SYIC - 23690 CAT50 x SBL25 - 2.75'' 6.75 1.33 1.575 1.69 M16 x 2.0P 0.125 ~ 1.00 4.4
SYIC - 23692 CAT50 x SBL25 - 4.5'' 8.5 3.06 1.575 1.84 M16 x 2.0P 0.125 ~ 1.00 4.6
