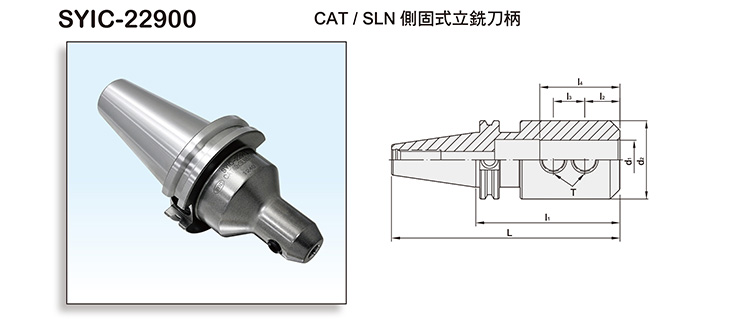

Product Name : CAT/SLN SIDE LOCK END MILL HOLDER
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

MODEL NO.TYPE d1 - l1Ll2l3l4d2TWEIGHT (KGS)
SYIC - 22907 CAT40 x SLN1/8" - 2.375" 5.062 0.37 - 0.787 0.69 6# - 32 1.15
SYIC - 22909 CAT40 x SLN3/16" - 2.5" 5.187 0.562 - 0.984 0.69 8# - 32 1.2
SYIC - 22911 CAT40 x SLN1/4" - 3" 5.687 0.63 - 1.38 0.78 1/4 - 28 1.15
SYIC - 22913 CAT40 x SLN5/16" - 3" 5.687 0.6 - 1.38 0.88 5/16 - 24 1.2
SYIC - 22915 CAT40 x SLN3/8" - 3" 5.687 0.75 - 1.535 1 3/8 - 24 1.18
SYIC - 22917 CAT40 x SLN1/2" - 3" 5.687 0.875 - 1.732 1.25 7/16 - 20 1.4
SYIC - 22919 CAT40 x SLN5/8" - 3" 5.687 0.937 - 1.85 1.5 1/2 - 20 1.5
SYIC - 22921 - 3 CAT40 x SLN3/4" - 3" 5.687 1 - 1.929 1.75 5/8 - 18 1.65
SYIC - 22921 CAT40 x SLN3/4" - 3.5" 6.187 1 - 1.929 1.75 5/8 - 18 1.7
SYIC - 22923 CAT40 x SLN7/8" - 3.5" 6.187 1.063 0.875 2.36 1.88 5/8 - 18 2.55
SYIC - 22925 CAT40 x SLN1" - 4" 6.687 1.125 1 2.56 2 3/4 - 16 2.8
SYIC - 22927 CAT40 x SLN1-1/4" - 4.6" 7.287 1.125 1 2.56 2.5 3/4 - 16 2.9
SYIC - 22929 CAT40 x SLN1-1/2" - 4.5" 7.187 1.125 1 2.56 2.5 3/4 - 16 3.2
SYIC - 22931 CAT50 x SLN1/4" - 4" 8 0.63 - 1.378 0.78 1/4 - 28 3.95
SYIC - 22933 CAT50 x SLN5/16" - 4" 8 0.6 - 1.378 0.88 5/16 - 24 3.95
SYIC - 22935 CAT50 x SLN3/8" - 4" 8 0.75 - 1.535 1 3/8 - 24 4
SYIC - 22937 CAT50 x SLN1/2" - 4" 8 0.875 - 1.732 1.25 7/16 - 20 4.15
SYIC - 22939 CAT50 x SLN5/8" - 4" 8 0.937 - 1.85 1.5 1/2 - 20 4.3
SYIC - 22941 CAT50 x SLN3/4" - 4" 8 1 - 1.929 1.75 5/8 - 18 4.35
SYIC - 22943 CAT50 x SLN7/8" - 4" 8 1.063 0.875 2.362 1.88 5/8 - 18 5.3
SYIC - 22945 CAT50 x SLN1" - 4" 8 1.125 1 2.56 2 3/4 - 16 5.5
SYIC - 22947 - 4 CAT50 x SLN1-1/4" - 4" 8 1.125 1 2.756 2.5 3/4 - 16 5.65
SYIC - 22947 CAT50 x SLN1-1/4" - 4.6" 8.6 1.125 1 2.756 2.5 3/4 - 16 5.7
SYIC - 22949 CAT50 x SLN1-1/2" - 4.6" 8.6 1.125 1 2.756 2.5 3/4 - 16 5.7
SYIC - 22951 CAT50 x SLN2" - 6" 10 1.41 1.5 3.347 3.75 1 - 14 5.9
