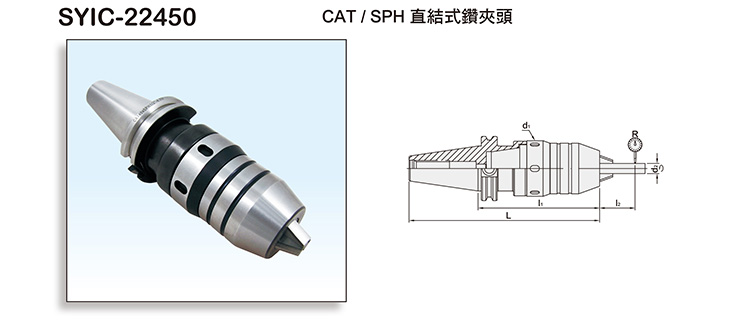

Product Name : CAT/SPH DRILL CHUCK ADAPTER INTEGRATED TYPE
Product Introduction

This product is added with multi safety design and suitable for Machine Center. In automatic operation controlled by computer and unmanned management process, it can be processed safely and smoothly.



  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

MODEL NO.TYPELl2d1d2RWEIGHT (KGS)
SYIC - 22454 CAT40 x SPH5/16" - 4" 6.69 2.16 1.65 0.24 0.04 1.85
SYIC - 22458 CAT40 x SPH1/2" - 4.75" 7.44 2.95 2.13 0.51 0.04 2.1
SYIC - 22462 CAT40 x SPH5/8" - 6" 8.69 3.15 2.44 0.51 0.04 2.95
SYIC - 22470 CAT50 x SPH5/16" - 4" 8 2.16 1.65 0.24 0.04 2.1
SYIC - 22474 CAT50 x SPH1/2" - 4.25" 8.25 2.95 2.13 0.51 0.04 2.85
SYIC - 22478 CAT50 x SPH5/8" - 4.5" 8.5 3.15 2.44 0.51 0.04 3.45
