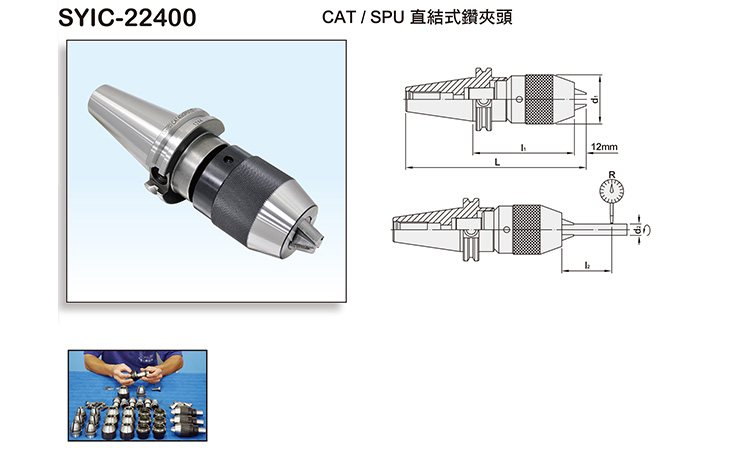

Product Name : CAT/SPU DRILL CHUCK ADAPTER
Product Introduction

This product is added with multi safety design and suitable for Machine Center. In automatic operation controlled by computer and unmanned management process, it can be processed safely and smoothly.



  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



INCHES

MODEL NO.TYPEl1Ld1l2d2RWEIGHT (KGS)
SYIC - 22403 CAT40 x SPU1/2" - 4" 4 7.159 1.969 2.615 0.394 0.00157 1.95
SYIC - 22404 CAT40 x SPU5/8" - 4.6" 4.6 7.759 1.969 3.149 3.215 0.00157 2.25
SYIC - 22405 CAT50 x SPU1/2" - 4" 4 8.472 1.969 2.953 0.512 0.00157 4.35
