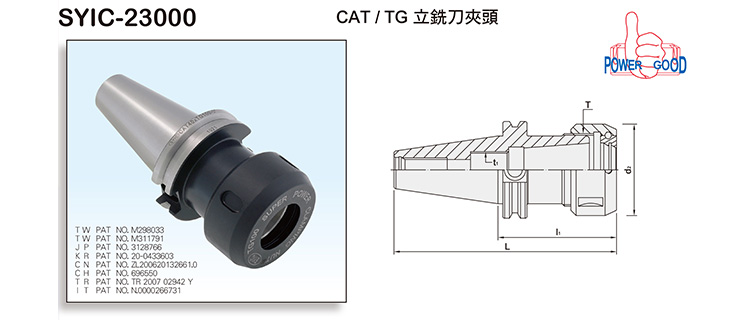

Product Name : CAT/TG COLLET CHUCK
Product Introduction
d1 TEST BAR DIAMETER MIN. MAX.LCONCENTRICITY
3 6 16 0.01
6 10 25 0.01
10 18 40 0.01
18 24 50 0.01
24 32 60 0.01
  • Every collet shipped out of the factory has been passed inspection.
  • Standard testing table is in accordance with the cutting length and precise requirements of various sizes of end mills.



  • Collet taper is 4.1751°, good concentricity and clamping capacity.
  • Suitable for heavy-duty cutting.
  • Particular square thread design enables good clamping capacity.
  • The price includes a nut, but without any spanner and collets.
  • While ordering, other Power Good Nuts could be purchased separately for combination.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ld2t1TSIZE RANGEWEIGHT (KGS)
SYIC - 23008 CAT40 x TG75 - 2.75" 5.437 1.968 M16 x 2.0P TW 1-1/2" - 12 0.125 ~ 0.75 1.2
SYIC - 23010 CAT40 x TG75 - 4" 6.687 1.968 M16 x 2.0P TW 1-1/2" - 12 0.125 ~ 0.75 1.4
SYIC - 23012 CAT40 x TG75 - 5" 7.687 1.968 M16 x 2.0P TW 1-1/2" - 12 0.125 ~ 0.75 1.6
SYIC - 23014 CAT40 x TG100 - 3" 5.687 2.362 M24 x 2.0P TW 1-7/8" - 12 0.094 ~ 1.00 1.2
SYIC - 23016 CAT40 x TG100 - 4" 6.687 2.362 M24 x 2.0P TW 1-7/8" - 12 0.094 ~ 1.00 1.4
SYIC - 23018 CAT40 x TG100 - 6" 8.687 2.362 M24 x 2.0P TW 1-7/8" - 12 0.094 ~ 1.00 2.55
SYIC - 23020 CAT40 x TG150 - 5" 7.687 3.228 M24 x 2.0P TW 2-5/8" - 12 0.500 ~ 1.50 2.9
SYIC - 23022 CAT40 x TG150 - 6" 8.687 3.228 M24 x 2.0P TW 2-5/8" - 12 0.500 ~ 1.50 3.7
SYIC - 23030 CAT50 x TG100 - 3" 7 2.362 M24 x 2.0P TW 1-7/8" - 12 0.094 ~ 1.00 3.25
SYIC - 23032 CAT50 x TG100 - 4" 8 2.362 M24 x 2.0P TW 1-7/8" - 12 0.094 ~ 1.00 4.4
SYIC - 23034 CAT50 x TG100 - 6" 10 2.362 M24 x 2.0P TW 1-7/8" - 12 0.094 ~ 1.00 5.3
SYIC - 23036 CAT50 x TG150 - 5" 9 3.228 M24 x 2.0P TW 2-5/8" - 12 0.500 ~ 1.50 5.7
SYIC - 23038 CAT50 x TG150 - 6" 10 3.228 M24 x 2.0P TW 2-5/8" - 12 0.500 ~ 1.50 6.1
SYIC - 23040 CAT50 x TG150 - 7" 11 3.228 M24 x 2.0P TW 2-5/8" - 12 0.500 ~ 1.50 6.5
