Product Name : DAT Boring Head Shank
Product Introduction
  • Boring Head Shank can be purchased separately instead of one set.
  • Packaged with a cardboard box.
  • Modular type. Can be used for various sizes of Boring Heads.
  • Full set packed by a wooden box.
  • The pre-balance can reach G6.3 5,000 rpm, without an inspection report.
  • The balancion grade and revolution can be done according to customer's request but the additional charge is needed.

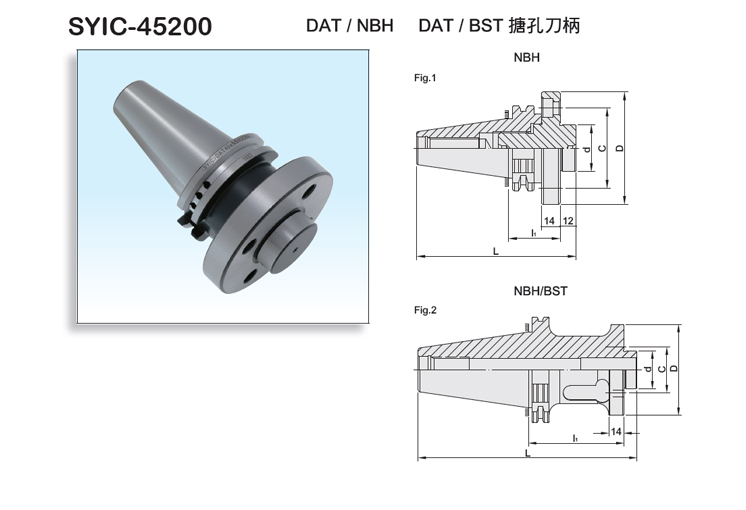

MODEL NO.TYPEI1LDd h7CFigWEIGHT (KGS)
SYIC - 45210 DAT30 x NBH2084A 35 94.8 84 35 PCDø60
4-M8 x 1.25P SCREW USE
1 1.7
SYIC - 45212 DAT30 x NBH2084B - 100 100 159.8 84 35 PCDø60
4-M8 x 1.25P SCREW USE
2 1.9
SYIC - 45215 DAT40 x NBH2084A 35 115.4 84 35 PCDø60
4-M8 x 1.25P SCREW USE
1 1.7
SYIC - 45217 DAT40 x NBH2084B - 100 100 180.4 84 35 PCDø60
4-M8 x 1.25P SCREW USE
2 2
SYIC - 45218 DAT50 x NBH2084A 35 148.75 84 35 PCDø60
4-M8 x 1.25P SCREW USE
1 3.5
SYIC - 45220 DAT50 x NBH2084B 100 213.75 84 35 PCDø60
4-M8 x 1.25P SCREW USE
2 4
SYIC - 45230 DAT50 x BST-150 150 258.75 95 50 PCDø72 4-ø13 2 4
SYIC - 45230 - 200 DAT50 x BST-200 200 308.75 95 50 PCDø72 4-ø13 2 8.75
SYIC - 45230 - 250 DAT50 x BST-250 250 358.75 95 50 PCDø72 4-ø13 2 9.76
