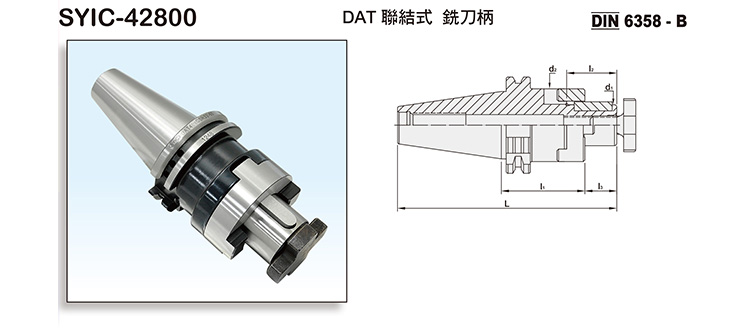

Product Name : DAT/COMBI Shell End Mill Arbor
Product Introduction
  • Shank includes removable ring, nut and spanner.
  • Can purchase removable ring, nut, and spanner separately.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3d2d3 MAX.d4WEIGHT (KGS)
SYIC - 42800 DAT30 x CSR16 - 50 114.8 27 17 32 45 20 1.4
SYIC - 42801 DAT30 x CSR22 - 50 116.8 31 19 40 45 28 1.6
SYIC - 42803 DAT30 x CSR27 - 55 123.8 33 21 48 45 35 1.8
SYIC - 42810 DAT40 x CSR16 - 55 140.4 27 17 32 50 20 1.2
SYIC - 42811 DAT40 x CSR22 - 55 142.4 31 19 40 50 28 1.5
SYIC - 42813 DAT40 x CSR27 - 55 144.4 33 21 48 50 35 1.9
SYIC - 42815 DAT40 x CSR32 - 60 152.4 38 24 58 50 42 2.4
SYIC - 42817 DAT40 x CSR40 - 60 155.4 41 27 70 50 52 3
SYIC - 42820 DAT50 x CSR16 - 55 173.75 27 17 32 80 20 4.4
SYIC - 42821 DAT50 x CSR22 - 55 175.75 31 19 40 80 28 4.6
SYIC - 42823 DAT50 x CSR27 - 55 177.75 33 21 48 80 35 4.8
SYIC - 42825 DAT50 x CSR32 - 55 180.75 38 24 58 80 42 5
SYIC - 42827 DAT50 x CSR40 - 55 183.75 41 27 70 80 52 5.2
SYIC - 42829 DAT50 x CSR50 - 70 201.75 46 30 90 80 63 5.4
