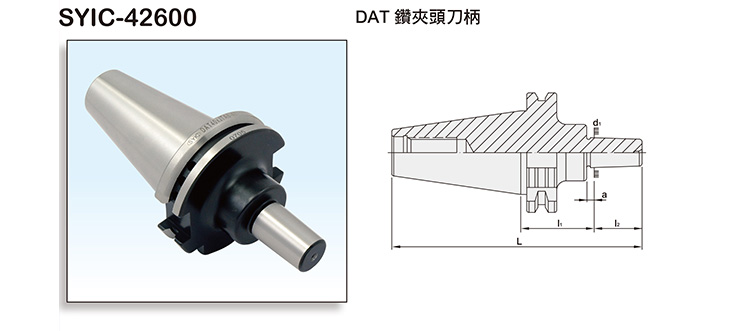

Product Name : DAT DRILL CHUCK ARBOR
Product Introduction
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For Drill Chuck with DIN 238.



MODEL NO.TYPE - l1Ll2d1aWEIGHT (KGS)
SYIC - 42605 DAT30 x JTA6 - 40 113.2 25.4 17.17 4 0.9
SYIC - 42617 DAT40 x JTA6 - 40 133.8 25.4 17.17 4 1.3
SYIC - 42627 DAT50 x JTA6 - 40 167.15 25.4 17.17 4 3.4
SYIC - 42601 DAT30 x B12 - 40 106.3 18.5 12.065 3.5 0.7
SYIC - 42603 DAT30 x B16 - 40 111.8 24 15.733 5 1.1
SYIC - 42611 DAT40 x B12 - 40 126.9 18.5 12.065 3.5 1.25
SYIC - 42613 DAT40 x B16 - 40 132.4 24 15.733 5 1.3
SYIC - 42615 DAT40 x B18 - 40 140.4 32 17.78 5 1.4
SYIC - 42621 DAT50 x B12 - 40 160.25 18.5 12.065 3.5 3.1
SYIC - 42623 DAT50 x B16 - 40 165.75 24 15.733 5 3.2
SYIC - 42625 DAT50 x B18 - 40 173.75 32 17.78 5 3.3
