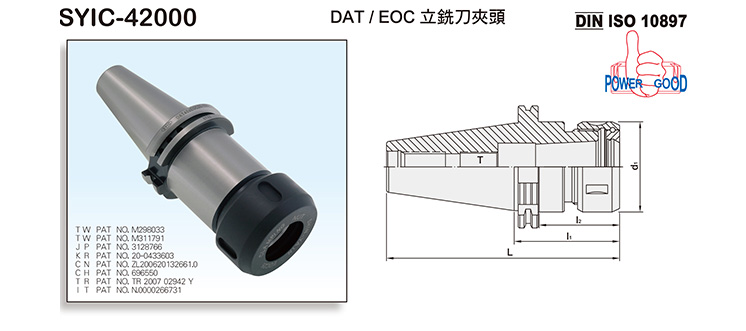

Product Name : DAT/EOC COLLET CHUCK
Product Introduction
  • Each collet chuck has been locked with a nut, but not including a spanner and collet.
  • The draw bar thread can make pull studs locked precisely and easily, including 45°, 60°, and 90°.
  • Suitable for heavy-duty cutting.
  • The pre-balance can reach G6.3 10,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • While ordering, Power Good Nuts could be purchased separately for combination.



MODEL NO.TYPE - l1Ll2d1TSIZE RANGEWEIGHT (KGS)
SYIC - 42001 DAT30 x EOC25 - 80 127.8 60 60 M12 x 1.75P 3.0 ~ 25 1.5
SYIC - 42011 DAT40 x EOC25 - 80 148.4 60 60 M16 x 2.0P 3.0 ~ 25 1.85
SYIC - 42012 DAT40 x EOC25 - 100 168.4 80 60 M16 x 2.0P 3.0 ~ 25 2.3
SYIC - 42013 DAT40 x EOC25 - 120 188.4 100 60 M16 x 2.0P 3.0 ~ 25 2.55
SYIC - 42015 DAT40 x EOC32 - 90 158.4 70 72 M20 x 2.0P 4.0 ~ 32 1.95
SYIC - 42017 DAT40 x EOC32 - 120 188.4 100 72 M20 x 2.0P 4.0 ~ 32 2.35
SYIC - 42021 DAT50 x EOC25 - 70 171.75 50 60 M16 x 2.0P 3.0 ~ 25 3.25
SYIC - 42023 DAT50 x EOC25 - 140 241.75 115 60 M16 x 2.0P 3.0 ~ 25 5.1
SYIC - 42025 DAT50 x EOC32 - 80 181.75 60 72 M24 x 2.0P 4.0 ~ 32 4.4
SYIC - 42027 DAT50 x EOC32 - 140 241.75 120 72 M24 x 2.0P 4.0 ~ 32 5.7
