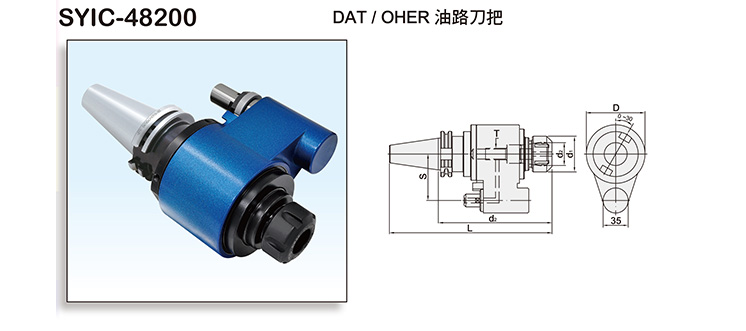

Product Name : DAT/ER Oil Hole Collet Chuck
Product Introduction
  • First, bolt the coolant screw with the fixed block of machine.



MODEL NO.TYPELI1Dd1d2 ERSTWEIGHT (KGS)
SYIC - 48202 DAT40 x OHER16 - 160 225.4 160 82 28 16 65 M10 3.8
SYIC - 48204 DAT40 x OHER20 - 160 225.4 160 82 34 20 65 M12 4.1
SYIC - 48206 DAT40 x OHER25 - 160 225.4 160 82 42 25 65   4.3
SYIC - 48208 DAT40 x OHER32 - 160 225.4 160 82 50 32 65 M16 4.5
SYIC - 48210 DAT50 x OHER16 - 160 261.8 160 98 28 16 80 M10 7
SYIC - 48212 DAT50 x OHER20 - 160 261.8 160 98 34 20 80 M12 7.1
SYIC - 48214 DAT50 x OHER25 - 160 261.8 160 98 42 25 80   7.2
SYIC - 48216 DAT50 x OHER32 - 160 261.8 160 98 50 32   M16 7.3
SYIC - 48218 DAT50 x OHER40 - 160 261.8 160 98 63 40   M20 7.5
